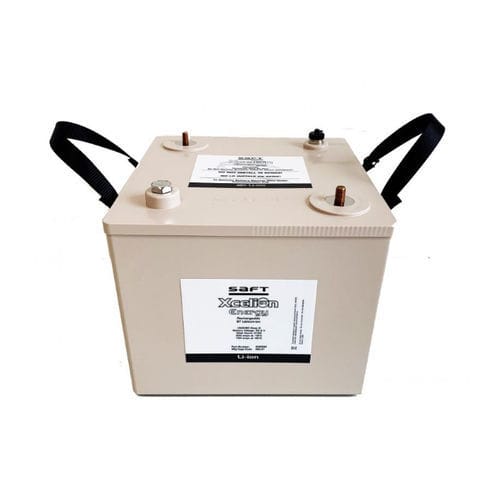

Lithium-ion battery Xcelion® 56V-E
for military applicationsmaintenance-freehigh-performance

lithium-ion battery
lithium-ion battery
Add to favorites
Compare this product


Characteristics

Type
lithium-ion
Applications
for military applications
Other characteristics
high-performance, maintenance-free
Load capacity

41 Ah

Length / diameter

269 mm
(10.6 in)

Width

256 mm
(10.08 in)

Height

230 mm
(9.1 in)

Weight

20.7 kg
(45.64 lb)

Description

The Xcelion 56V-E battery provides operating voltage from 40-60V and is designed for 48V applications such as military micro-grids, defense applications, small electric mobility and stationary power. This ruggedized battery uses Saft’s proprietary Super-Phosphate® chemistry which is ideally suited for high performance applications requiring high levels of safety. Features & Benefits The Xcelion 56V offers significant weight savings and life cycle costs compared to lead-acid technology, in addition to these features: Communicates over J1939 CAN Bus protocol Compatible with MIL-STD-1275E power bus Commercial off-the-shelf product Technical Specifications Ideally suited for applications operating on a 48V bus Nominal Voltage: 52.8V Energy: 2.16 kWh Cold Cranking Amps: 300A at -18°C for 30 seconds
