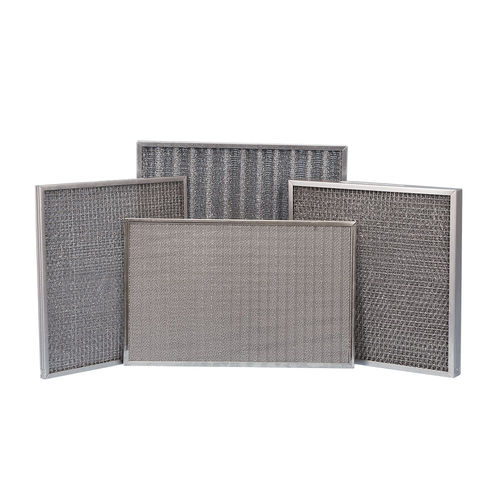

Air filter PF series

particulatedustpanel

The PFM and PFO/M range of filter panels are used for filtering coarse particles. The filter media is made from a flat anodised metal mesh. They are ideal for use in heavy-duty environments that require high mechanical strength and/or high operating temperatures (up to 250°C). Applications: filtering coarse dust particles, lint and soil in civil and industrial environments: hot air generators for civil and industrial facilities; ventilation of electrical engines and industrial machinery; oily steam separators and filtration walls for industrial facilities; installation on mobile machinery subject to vibrations. The PFI panels are made entirely from AISI 304 stainless steel with a micro-expanded sheet metal filter medium; for this reason they are used in kitchen extractor hoods (with temperatures up to 300°C). Models PFM, PFO/M: Filter media in galvanised steel mesh; Frame in galvanised steel sheet; Two galvanised steel electrowelded containment meshes. Available in 23 and 48mm thickness. PFI model: Filter media in AISI 304 stainless steel mesh; AISI 304 stainless steel sheet frame. Two AISI stainless steel electrowelded containment meshes. Available in 12mm thickness. On request: Version ATEX 2GD II T6 Full aluminium version (PFM A, PFO/M A); Full AISI 304 stainless steel version (PFM S, PFO/M S).
