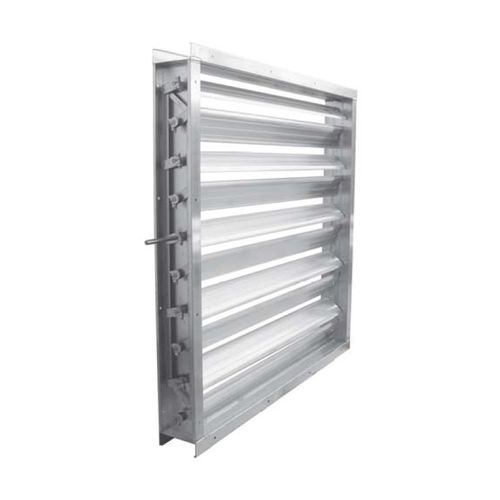

100MM SPACED ALUMINIUM CONTROL DAMPER
The GTA010 control damper is used to adjust and balance airflows and air pressures in air-conditioning and ventilation systems and air-processing units.
Technical features:
• sizes range from 200 x 210mm to 1500 x 2010mm (single section construction). For B>1500mm, made with central brace;
• frame made from 4 natural non-anodised aluminium pieces, welded together, with 40mm flange, 1.5mm thick;
• counter-moving fin-profile blades in non-anodised extruded aluminium;
• blade spacing 100mm;
• 12mm diameter galvanised steel pins;
• AXTROMID A 2800 nylon bushes;
• non-anodised natural aluminium stops;
• aluminium lateral strips.
The GT range can be supplied with manual or electric systems for secure or classified areas.
Certifications:
• ATEX IIGD -20°C < T < +50°C;
• EAC Declaration of Conformity.
