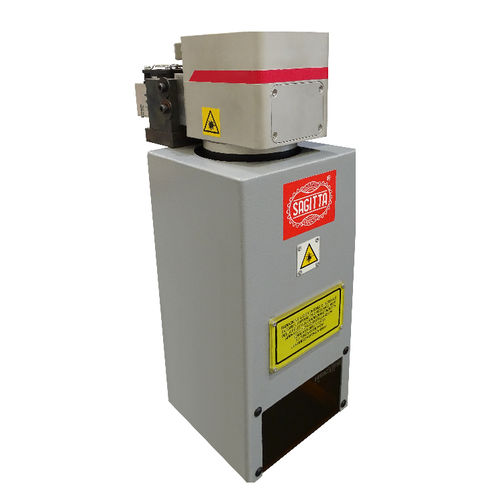

Laser marking machine

metalplasticbenchtop

Marking System IR Q-Switched 2W MKR for nailheads, studs, eyelets, rivets, buckles, metal and plastic parts. The Galvanometric Head mounted on a height-adjustable support for easy positioning and focusing allows to customize the metal or plastic parts of shoes, bags and belts with writings, logos, brands, codes, designs. The Marking on metal is impossible with traditional CO2 lasers. The IR wavelength – acronym for Infrared Ray, or infrared radiation is the wavelength of the most versatile light for laser processing. The typical feature of lasers with a wavelength of 1064 nm is to offer a wide range of processing applications from plastics to metals. The infrared spectrum being longer than 780 nm is not visible to the human eye. TECHNICAL DATA: Power-supply and control rack with MKR board 2 W laser module Peak power 20 kW Repetition rate 25 kHz Pulse duration 4 ns Scanner head f-theta lens Marking area 110 x 110 Not usable on transparent objects such as glass, as the laser passes through them
