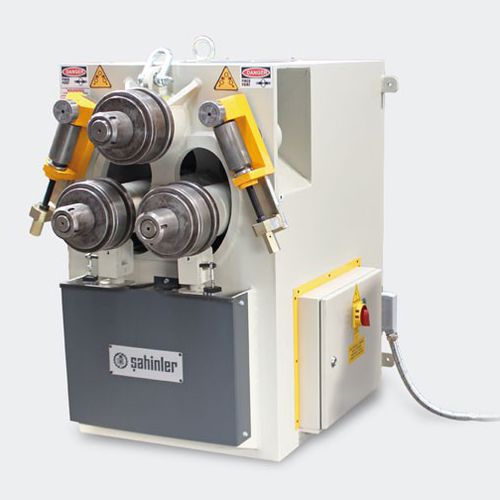

Hydraulic bending machine HPK 65tubeprofile3 drive rollers
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Product handled
- tube, profile
- Number of rollers
- 3 drive rollers
- Displacement
- horizontal, vertical
- Control
- NC, digital
- Other characteristics
- mechanical
- Bending capacity
60 mm
(2.36 in)- Roller diameter
180 mm
(7 in)- Overall length
1,200 mm
(47 in)- Overall width
850 mm
(33 in)- Total height
1,200 mm
(47 in)- Total power
3.8 kW
(5.2 hp)
Description
Steel Construction welded Frame
3 Rolls are Powered
Hardened and ground shafts made of high tensile special steel
Rolls are hardened and ground
Horizontal and Vertical Working Position
Hardened Standard Rolls
Mobile Control Panel
3 Axis Mechanical Lateral Angle Guide Rolls
Brake Motor
Digital Read-outs (2pcs)
• Bottom rolls hydraulic movable up-down
OPTIONAL EQUIPMENTS
Pipe, tube and profile bending rolls
Hydraulic latéral guide rolls (2 axis)
Automation with NC control
Optional Crâne System For Spiral Rollings
