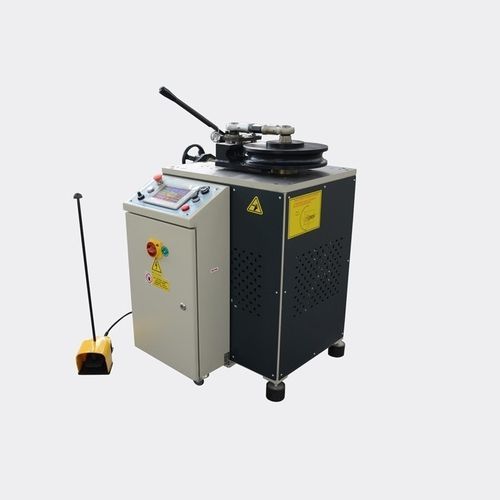

Electric bending machine SPB 60tubeNCwithout mandrel
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Product handled
- tube
- Control
- NC
- Other characteristics
- without mandrel
- Bending radius
Max.: 150 mm
(5.91 in)Min.: 60 mm
(2.36 in)- Overall length
850 mm
(33 in)- Overall width
750 mm
(30 in)- Total height
1,200 mm
(47 in)- Weight
330 kg
(728 lb)- Total power
2.2 kW
(3 hp)
Description
NC Control Screen with Memory enables professional and easy operation of the machine
SPB 60 model has capability of bending up to Ø 60mm x 4mm pipe, SPB 76 model has capability of bending up to Ø 76mm x 3 mm pipe
Holder attachment for supporting the tube during the fxing it on to the machine
Free holes for mounting the special tools
Steel Welded Construction Frame
Termic-Power Reset gauges
Emergency stop button
The Machine has 500 programme memory on internal memory
Minimum bending Radius 3 times the diameter (Ø) of the tube (varies according to the tube Wall thickness and material)
1 Set of Pipe Bending Tool standard included
Infnite Speed Adjustment System
