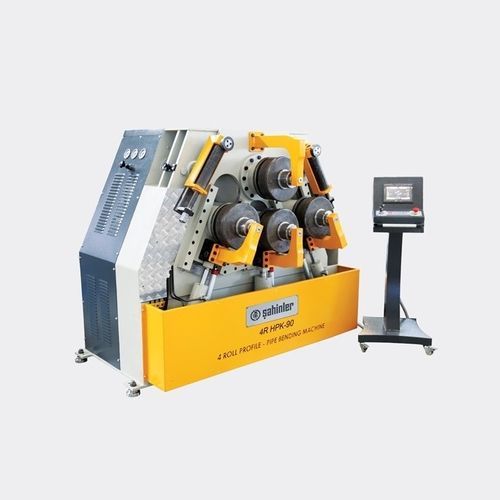

Hydraulic bending machine 4R HPK 90

tubeprofile4 drive rollers

Shorter fiat on edges. More Accurate results for pipes and Aluminium profiles. Wide distance of side rolls and consequently more capacity on bigger diameter bending. Better performance with NC control Unit. More accessories available on applications. • 4 Rolls Machine. (1) Steel Welded Construction Frame. • On 90 and 110mm Shaft Models 3 Rolls are driven by hydromotor + planetary reducers , on 70mm Shaft Model 2 Rolls are driven • Hardened and ground shafts made of high tensile spécial steel. • Standard Rolls (1 Set with 4 Rolls). • Rolls are hardened and ground in the hole. (2) Bottom and latéral rolls hydraulic movable up-down. • Horizontal and Vertical Working Position. (3) On 70mm Shaft model 1+1 axis Guide Rolls , on 90 and 110mm Shaft models 3+3 axis Guide rolls (4) Mobile Control Panel. • User’s Manual with EC Certification.
