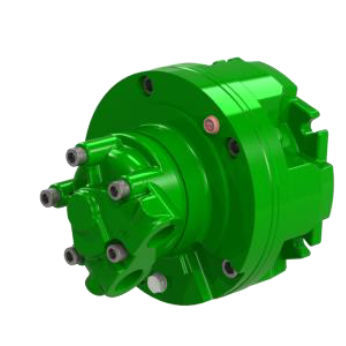

Radial piston hydraulic motor BD1 double-displacement
Add to favorites
Compare this product
Characteristics
- Technology
- radial piston
- Other characteristics
- double-displacement
- Pressure
Max.: 265 bar
(3,844 psi)Min.: 250 bar
(3,626 psi)- Rotational speed
Max.: 2,400 rpm
(15,079.64 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Torque
Max.: 3.9 Nm
(2.88 ft.lb)Min.: 0.4 Nm
(0.3 ft.lb)- Displacement
Max.: 243 cm³
(8.22 US fl oz)Min.: 25 cm³
(0.85 US fl oz)
Description
Double displacement motors with a large variety of displacement ratios (1:2; 1:3; 1:4 and the possibility of 1:0). The motors can handle power supplied in torque or power supplied in speed depending on the working conditions. The change of displacement can take place in motion and using hydraulic or electric control, guaranteeing the reliability and high performance of the entire hydraulic circuit.
