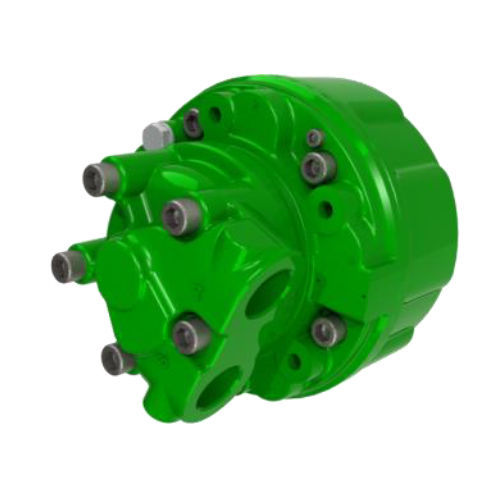

Radial piston hydraulic motor GM05fixed-displacement
Add to favorites
Compare this product
Characteristics
- Technology
- radial piston
- Other characteristics
- fixed-displacement
- Pressure
Max.: 45,000,000 Pa
(6,527 psi)Min.: 0 Pa
(0 psi)- Rotational speed
Max.: 1,000 rpm
(6,283.19 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Torque
Max.: 3.04 Nm
(2.24 ft.lb)Min.: 0.62 Nm
(0.46 ft.lb)- Displacement
Max.: 200 cm³
(6.76 US fl oz)Min.: 40 cm³
(1.35 US fl oz)
Description
A range of fixed displacement motors with a design resulting from continuous improvement obtained thanks to decades of experience in the field. High mechanical and volumetric efficiency and excellent cavitation resistance make them ideal products for any circuit that requires reliability, high performance and rotation control.
