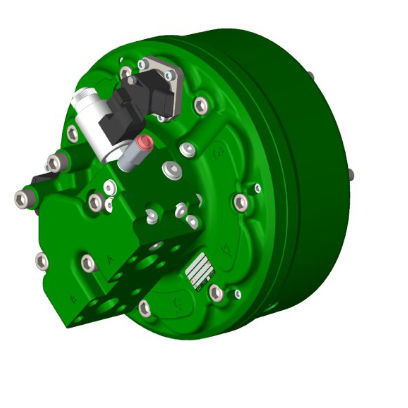

Radial piston hydraulic motor TV 1.5
variable-displacementhigh-pressurefor heavy-duty applications

Radial piston hydraulic motor - TV 1.5 - SAI Motori Idraulici - variable-displacement / high-pressure / for heavy-duty applications
Radial piston hydraulic motor - TV 1.5 - SAI Motori Idraulici - variable-displacement / high-pressure / for heavy-duty applications
Radial piston hydraulic motor - TV 1.5 - SAI Motori Idraulici - variable-displacement / high-pressure / for heavy-duty applications - image - 2
Add to favorites
Compare this product


Characteristics

Technology
radial piston
Other characteristics
variable-displacement, high-pressure, for heavy-duty applications
Pressure

Min.: 0 Pa
(0 psi)

Max.: 35,000,000 Pa
(5,076 psi)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 2,300 rpm
(14,451.33 rad.min-1)

Torque

Min.: 0 Nm
(0 ft.lb)

Max.: 6.45 Nm
(4.76 ft.lb)

Displacement

Min.: 60 cm³
(2.03 US fl oz)

Max.: 405 cm³
(13.69 US fl oz)

Description

The sustainable capacity and high pressure make T motors ideal for heavy duty use. The TV-TD motors enable continuous displacement variation. It is possible to reach a minimum displacement of 0cc from any maximum displacement. Maximum efficiency enables excellent performance of the motors, even at 10% of the maximum displacement.
