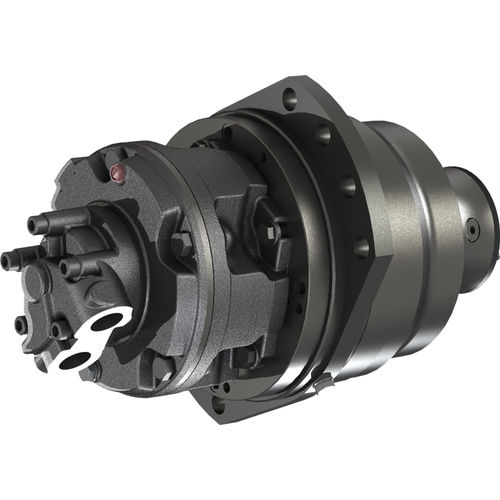

Gear hydraulic wheel motor GM1 + WR10fixed-displacementcompact
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Other characteristics
- fixed-displacement, compact
- Pressure
Max.: 42,500,000 Pa
(6,164 psi)Min.: 0 Pa
(0 psi)- Rotational speed
Max.: 200 rpm
(1,256.64 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Torque
Max.: 24 Nm
(17.7 ft.lb)Min.: 7.53 Nm
(5.55 ft.lb)- Displacement
Max.: 1,507 cm³
(50.96 US fl oz)Min.: 475 cm³
(16.06 US fl oz)
Description
Wheel drive units , with optional integrated static brake. Compact high torque motors that bear radial loads. The efficiency of the SAI motor, combined with a single stage gearbox, offers maximum starting torque and high-precision rotation control.
