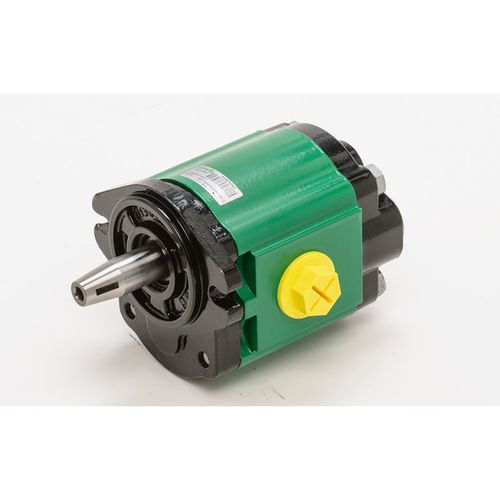

Hydraulic gear pump 2.5PB series aluminumcast ironcompact
Add to favorites
Compare this product
Characteristics
- Type
- gear
- Material
- aluminum, cast iron
- Other characteristics
- compact, flange
- Pressure
250 bar
(3,626 psi)- Flow rate
Max.: 120 l/min
(31.7 us gal/min)Min.: 0 l/min
(0 us gal/min)- Speed
600 rpm, 3,000 rpm
(3,770 rad.min-1, 18,850 rad.min-1)- Weight
Max.: 5.3 kg
(11.68 lb)Min.: 3.4 kg
(7.5 lb)- Fluid temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)- Power
Max.: 48 kW
(65.26 hp)Min.: 0 kW
(0 hp)
Description
Displacements from 0.72 to 2.69 cu.in/rev.
Integral gear with 12 teeth.
Double shaft seal.
Available with flanges, shafts and ports for the main European, German and American standards.
Available supports with bearing.
Wide range of rear covers with built-in valves.
Catalogs
GROUP 2.5 - B SERIES
29 Pages
GROUP 3.5 - B SERIES
25 Pages
