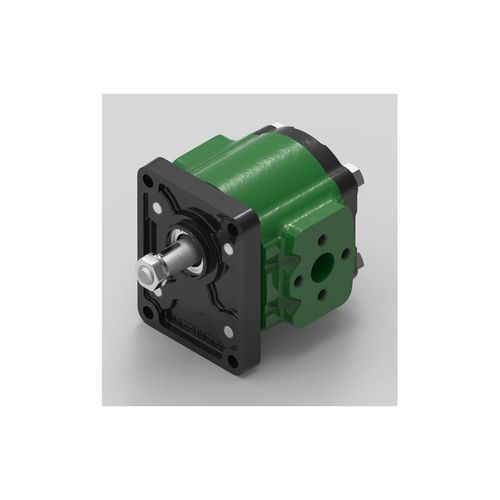

Hydraulic gear pump 2PGE series cast iron
Add to favorites
Compare this product
Characteristics
- Type
- gear
- Material
- cast iron
- Pressure
270 bar
(3,916 psi)- Flow rate
Max.: 70 l/min
(18.49 us gal/min)Min.: 0 l/min
(0 us gal/min)- Speed
600 rpm, 4,000 rpm
(3,770 rad.min-1, 25,133 rad.min-1)- Weight
Max.: 17.2 kg
(37.92 lb)Min.: 10.58 kg
(23.32 lb)- Fluid temperature
Max.: 80 °C
(176 °F)Min.: -25 °C
(-13 °F)- Power
Max.: 32 kW
(43.51 hp)Min.: 0 kW
(0 hp)
Description
Displacements from 1.01 to 1.62 cu.in/rev.
Integral gear with 12 teeth.
Double shaft seals.
Flanges: European, German and American standard.
Catalogs
2PGE_Technical Catalogue
34 Pages
