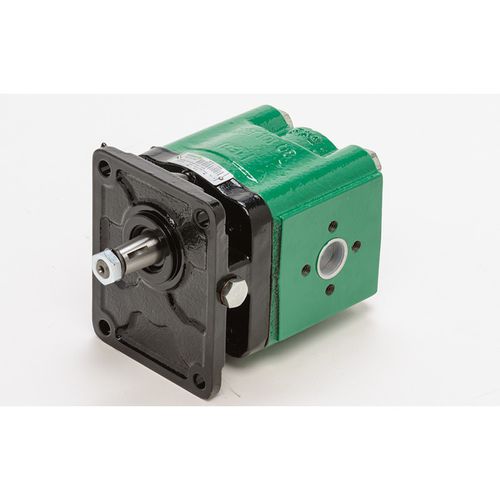

Gear hydraulic motor MG330 serieshigh-pressurecast iron
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Other characteristics
- high-pressure, cast iron
- Pressure
300 bar
(4,351 psi)- Rotational speed
Min.: 600 rpm
(3,769.91 rad.min-1)Max.: 3,000 rpm
(18,849.56 rad.min-1)- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 200 Nm
(147.51 ft.lb)- Displacement
34.4 cm³
(1.16 US fl oz)
Description
Cast iron front flanges and rear bodies.
Displacements from 2.1 to 4.48 cu.in/rev.
High volumetric efficiency throughout the full pressure range, by narrow machining tolerance range and by floating plates, that ensure axial compensation.
High pressure capability by DU bearings.
Integral gear with 12 teeth.
Double shaft seals.
Ports: European and SAE Standards.
