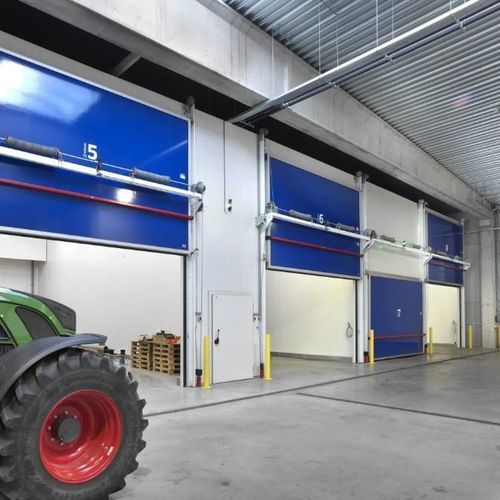

Vertical sliding door KH-1010 (V)

aluminumfiberglassrubber

Door leaf constructed of a core of 100mm insulation material, covered on both sides with polyester and finished all round with anodized aluminium profiles, thermal bridge-free. Equipped with an aluminium drop/lift rail system. Lightweight owing to the use of high quality polyester (available in various colours). Seamless door leaf. Door leaf and frame fully thermal bridge-free. Various designs: horizontal, vertical and hinged doors. Large dimensions also possible. Manually or electrically operated with several speeds. Double door version available. If executed with electrical controls opening speeds up to 1.8 m/sec. are possible. Deliverable in kit form. Special stainless steel version possible. Border Anodized aluminium profiles, thermal bridge-free. Closing Not included. Available at additonal price. Seal All round by means of rubber profiles. Door leaf color Standard colour RAL 9016 (white). For a small additional price RAL 6010 (green) or RAL 5005 (blue). Frame Anodized aluminium profiles with a complete thermal bridge-free fit to the wall. Operation Manually operated (horizontal), chain operated (vertical). Electrical operation at additional price. Rail system Anodized aluminium drop/lift rail system type SRA with dust cap (horizontal), galvanized and powder coated guiding system (vertical). R-value panels Approx. 3,7 (m².K/W). Construction Door leaf constructed of a core of insulation material, covered on both sides with 1,5mm impactresistant glass-fibre reinforced foodsafe polyester. Thickness door leaf 100 mm.
