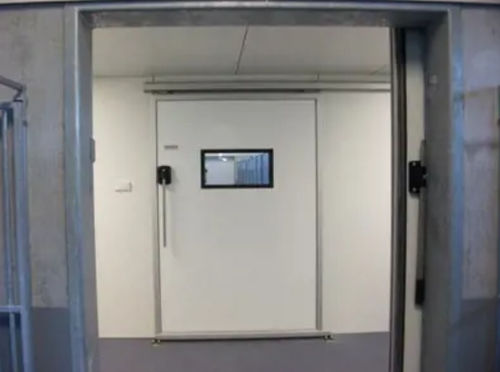

Stainless steel door BSD-0804

rubberdesignindoor

Door leaf constructed of a core of 40mm insulation material, covered on both sides with polyester and finished all round with aluminium profiles. Equipped with an aluminium drop/lift rail system. Lightweight owing to the use of high quality polyester (available in various colours). Seamless door leaf. Available in both a horizontal and vertical design. Glazing available at additional price. Manually or electrically operated with several speeds. Double door version available. If executed with electrical controls opening speeds up to 1,8 m/sec. are possible. Deliverable in kit form. Special stainless steel version possible Border Anodized aluminium profiles. Closing Not included. Available at additonal price. Seal All round by means of rubber profiles. Door leaf color Standard colour RAL 9016 (white). For a small additional price RAL 6010 (green) or RAL 5005 (blue). Frame Anodized aluminium profiles. Operation Manually operated (horizontal), chain operated (vertical). Electrical operation at additional price. Rail system Anodized aluminium drop/lift rail system type SRA with dust cap (horizontal), galvanized and powder coated guiding system (vertical). R-value panels Approx. 1,48 (m².K/W). Construction Door leaf constructed of a core of insulation material, covered on both sides with 1,5mm impact-resistant glass-fibre reinforced foodsafe polyester. Thickness door leaf 40mm. Glazing Not included, door leaf completely closed. Available at additional price. Additional options Extremely impact resistant polyester (RAL 9016), double-door version, special stainless steel version (see stainless steel documentation), finish of the clear opening, rain cap and more.
