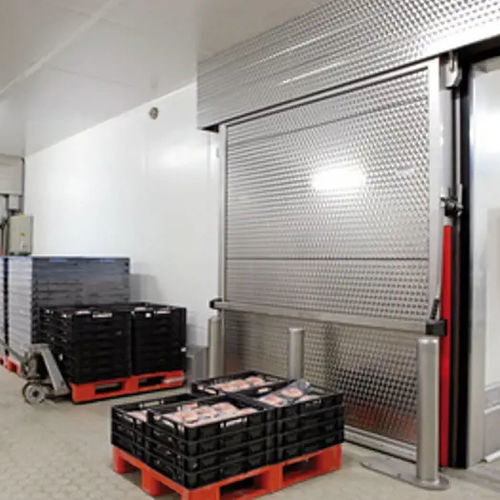

Freezer door KH-0914R2

slidingstainless steelrubber

Door leaf constructed of a core of insulation material, covered on both sides with polyester and finished all round with stainless steel 304 profiles, thermal bridge-free. Equipped with a drop/lift rail system. Fully available in stainless steel 304. The door leaf can also be covered with stainless steel 304 (circle-brushed). Both horizontally and vertically available, and also in very large sizes. Manually or electrically operated. Flexible threshold. A long term solution which keeps the interior and exterior floors at the same level and realises controlled shrinkage (option). Border Stainless steel 304 profiles, thermal bridge-free. Closing Not included. Available at additonal price. Seal All round by means of rubber profiles. Door leaf color Standard colours RAL 6010 (green), RAL 9016 (white) or RAL 5005 (blue). Threshold Included. Flexible threshold (a so called sliding dowel construction) at additional price. Frame Profiles covered with stainless steel 304 with a complete thermal bridge-free fit to the wall. Operation Manually operated (horizontal), chain operated (vertical). Electrical operation at additional price. Openers Inside and outside opener included (horizontal). Frame heating Included in door frame and threshold. Rail system Anodized aluminium drop/lift rail system type SRA with dust cap (horizontal), stainless steel 304 guiding system (vertical). R-value panels Approx. 5,19 (m².K/W). Construction Door leaf constructed of a core of insulation material, covered on both sides with 1,5mm impact-resistant glass-fibre reinforced foodsafe polyester. Door leaf covered with stainless steel 304 at additional price. Thickness door leaf 140mm.
