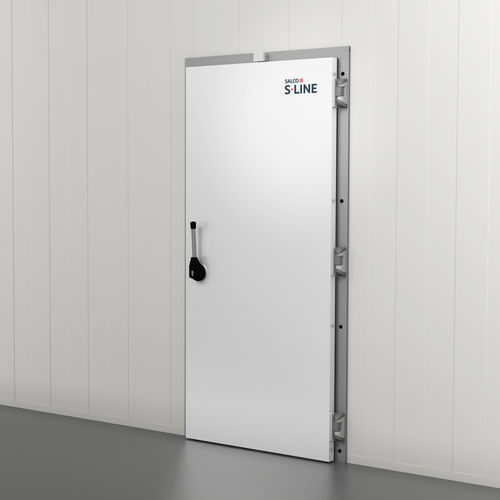

Hinged door VD-1815

aluminumrubbersafety

Door leaf constructed of insulation material, double-sided covered with 4mm lacquered aluminum composite plate with a synthetic core. Door leaf 100/ 150 mm. thick. This material makes the doors more resistant to a corrosion-sensitive environment. high impact resistance / dent resistance Stainless steel version available Lifting hinges. heating Included in the door frame. Closing Inner emergency release by means of a push button, outside fastener/handle with cylinder lock Seal All round by means of rubber profiles. Door leaf color Similar to RAL 9016 (white), RAL 9002 (light grey). Threshold Inclusive Frame Clamping frame of anodised aluminum for wall thickness 100 - 150 mm or 150 - 200 mm. Hinges Stainless steel/plastic rising hinges. Frame heating Including in door frame and threshold R-value panels 100mm approx. 4,03 (m².K/W), 150mm approx. 6,21 (m².K/W) Standard Construction Version for utility, refrigeration and freezer rooms Thickness door leaf 150mm Additional options Deviating measurement, door leaf and outer frame covered with stainless steel, outer frame all round, window in the door, door closer, storm chain, rain hood and more.
