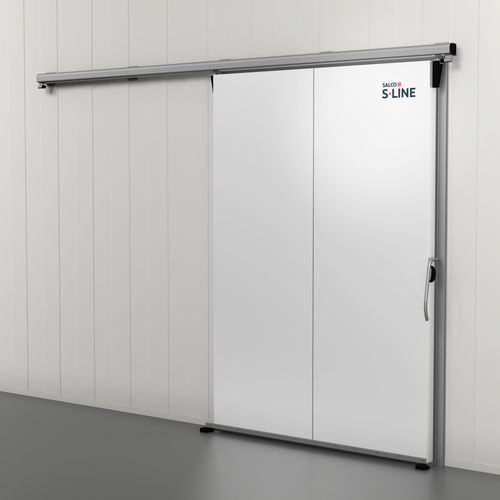

Sliding door VS-1810

aluminumrubberinsulated

Freezer sliding door constructed of insulation material, double-sided covered with 4mm lacquered aluminum composite plate with a synthetic core. Door leaf 100 mm thick. This material makes the doors more resistant to a corrosion-sensitive environment. high impact resistance / dent resistance. Stainless steel version available. Anodised aluminium 120 mm door frame and SRA125 rail system. Manually or electrically operated. Heating Included in the door frame. Heated threshold optional available. Many options available. Closing Not included. Available at additonal price. Seal All round by means of rubber profiles. Door leaf color Similar to RAL 9016 (white), RAL 9002 (light grey). Threshold Optional Frame Anodized aluminium profiles with a complete thermal bridge-free fit to the wall. Operation Manually operated. Electrical operation at additional price. Frame heating Standard in door frame. Rail system Anodized aluminium drop/lift rail system type SRA125 with dust cap. R-value panels 100mm approx. 4,03 (m².K/W) Standard Construction Door leaf constructed of a core of insulation material, covered on both sides with 4 mm lacquered aluminum composite plate with a synthetic core Thickness door leaf 100 mm
