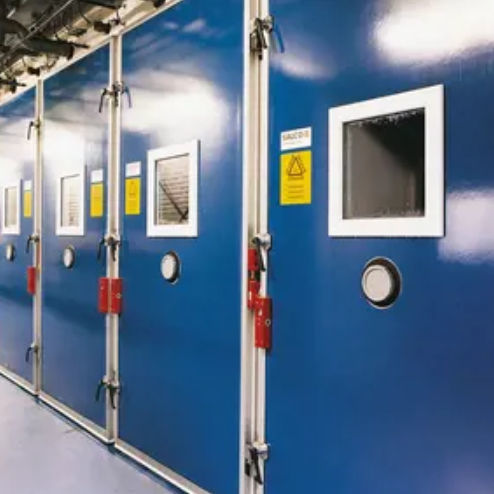

Hinged door KDG-1010

aluminumanodized aluminumrubber

Door leaf constructed of a core of 100mm insulation material, covered on both sides with polyester and finished all round with anodized aluminium profiles, thermal bridgefree. Equipped with a ‘lift and drop’ hinge. Especially for small, compact CA rooms. Accessibilty to total width of the room. 100% gastight due to inflatable sealing. Even with floor and wall irregularities it remains 100% gastight after years of use. No vaseline or sealant required for sealing. Opening and gastight sealing in seconds. By utilising the ‘lift and drop’ hinge, wear and tear of the rubber bottom sealing is prevented. Seamless door leaf. Door leaf and frame fully thermal bridge-free. Lightweight owing to the use of high quality polyester (available in various colours). 35 years worldwide experience. Border Anodized aluminium profiles, thermal bridge-free. Closing Not included. Available at additonal price. Seal 100% gas-tight by means of inflatable profiles Door leaf color Standard colour RAL 9016 (white). For a small additional price RAL 6010 (green) or RAL 5005 (blue). Frame Anodized aluminium profiles with a complete thermal bridge-free fit to the wall. Hinges Block hinges and a Salco patented ‘lift and drop’ that raises the door a few millimetres. Wear and tear of the rubber bottom sealing, due to opening and closing, is therefor prevented. Openers / duds Three rotation bars included. Internal handle excluded. R-value panels Approx. 3,7 (m².K/W) Construction Door leaf constructed of a core of insulation material, covered on both sides with 1,5mm impactresistant glass-fibre reinforced foodsafe polyester. Thickness door leaf 100 mm
