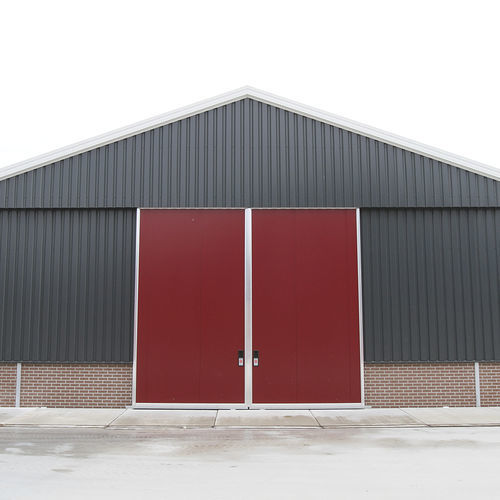

Sliding door PD-1480/1412

roll upsteelaluminum

Stable construction of blank aluminum box profiles and steel sandwich panels with a core of 40 mm insulation. Available in almost any desired size. Easy to operate due to the solid but light aluminum construction, even with large dimensions. low maintenance. Long lifespan, resulting in low depreciation costs. Can be supplied with both a top and a bottom rolling rail system (self-cleaning) at no extra cost. Various versions: sliding door, wicket door (set) or fixed facade. Manually or electrically operated. Double wing version available. When fitted with electrical control, opening speeds are up to 1.8 m/sec. possible. Available as a kit. Easy to transport and favorable pricing. Closing Sliding lock on the inside. Locks at extra cost. Seal The door is closed draft-tight by brush profiles. Color frame White aluminum. Frame powder coated in a RAL color to be determined at an additional cost. Color panels Inside Colorfarm Coating in standard color RAL 9002 (grey white), outside Colorcoat HPS200 Ultra in standard colors RAL 9002 (grey white), 12B29 (Juniper Green) or RAL 7016 (anthracite grey). Panels painted in a color to be determined at an additional cost. Operation Manually operated. Electric operation at extra cost. Rail system Bottom or top rolling in galvanized version. R-value panels Approx. 1.87 (m².K/W). Construction Door leaf constructed from a frame of aluminum tubular profiles filled with sandwich panels, clad on both sides with Sendzimir galvanized and lacquered. Thickness door leaf 40mm. Glazing Exclusive, door leaf completely closed. Glazing at extra cost.
