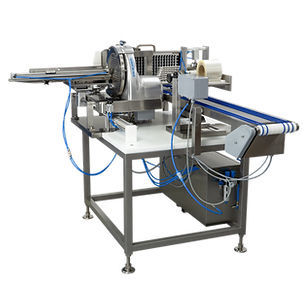

Salmon slicer SM 3029

automaticcircular blade230V single phase

Our SM 3029 automatic salmon slicer offers customers four combinable options to suit their individual requirements: salmon chute, tuna chute, interleaver and board dispenser. The salmon chute slices at angles ranging from 10-30°, while the tuna chute slices at 90°. The tuna chute is driven by a pneumatic system. Specification: Range of temperature : - 6°C / - 9°C (best for Salmon) Blade : ø 300 mm Cutting angle Salmon carriage : 30° - 10° Option Cutting angle Tuna carriage : 90° Option Number of slices : 3 - 99 Position of slices : 100 - 250 mm Interval of slices : 0 - 100 mm Film width : 100 or 120 mm Option Film length : 60 - 120 mm Option Control unit : microprocessor controlled Slicing process : 9 individual programmes Voltage : 230 / 1 / 50 Hz Pneumatic : 600 kPa / 280 liters per minute The slicing machine consists of: A) Complete stainless steel frame with adjustable feet. B) Slicer with automatic device to place the slices. C) Conveyor system: L = 2.000 mm. D) Interleaver system for polypropylene film (Option) E) Automatic dispenser with magazine for salmon boards (Option) F) Switch boxes, stainless steel (IP65) for pneumatic and microprocessor with heating.
