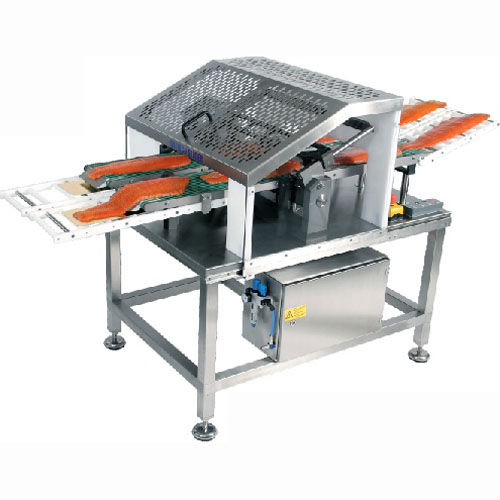

Salmon slicer SM 5418automatic230V single phase115V single phase
Add to favorites
Compare this product
Characteristics
- Food product
- salmon
- Operating mode
- automatic
- Electric powered
- 115V single phase, 230V single phase
- Material
- stainless steel
- Installation
- floor-standing
- Orientation
- horizontal
- Other characteristics
- 2-lanes, compact, multi-angle
- Throughput
160 p/min
- Slice thickness
Max.: 10 mm
(0.4 in)Min.: 2 mm
(0.1 in)- Engine power
1.5 kW
(2 hp)- Length
1,450 mm
(57 in)- Width
950 mm
(37 in)- Height
1,345 mm
(53 in)- Weight
200 kg
(441 lb)
Description
Our fresh fish slicers, especially for salmon, offer an adjustable slicing angle from 10° to 40°.
These machines make it possible to slice an entire fillet into individual slices while allowing for slice thickness variations between 2 and 10 mm. Our standard slicers are available in both single lane and double lane designs.
Specification:
Range of temperature : - 4°C / + 6°C
Cutting angle : 10° - 40°
Voltage : 230/1/50 Hz - 115/1/60 Hz
Pneumatic : 700 kPa / 120 liters per minute
Compact dimension (all dimensions are approximated)
The slicing machine consists of:
A) Complete stainless steel frame with adjustable feet.
B) Slicing unit with 2 feeding conveyors.
C) 2 conveyor systems for sliced salmon.
D) 2 out feeding roller systems for card boards.
E) Stainless steel switch boxes (IP65) for pneumatic and PLC
with integrated heating system.
