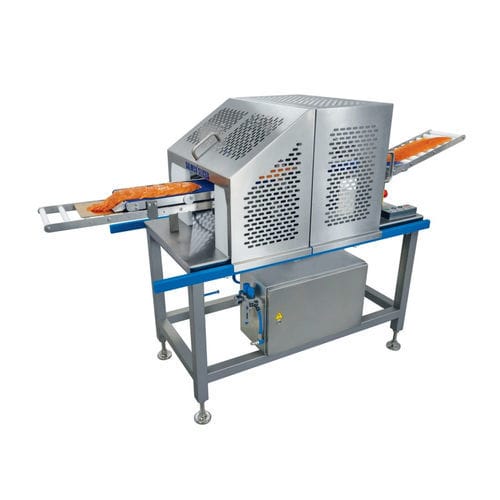

Salmon slicer SM 5118automatic230V single phase115V single phase
Add to favorites
Compare this product
Characteristics
- Food product
- salmon
- Operating mode
- automatic
- Electric powered
- 115V single phase, 230V single phase
- Material
- stainless steel
- Installation
- floor-standing
- Orientation
- horizontal
- Throughput
75 p/min
- Slice thickness
Min.: 2 mm
(0.1 in)Max.: 10 mm
(0.4 in)- Engine power
1 kW
(1.4 hp)- Length
1,450 mm
(57 in)- Width
600 mm
(24 in)- Height
1,345 mm
(53 in)- Weight
170 kg
(375 lb)
Description
Our fresh fish slicers, especially for salmon, offer an adjustable slicing angle from 10° to 40°.
These machines make it possible to slice an entire fillet into individual slices while allowing for slice thickness variations between 2 and 10 mm. Our standard slicers are available in both single lane and double lane designs.
Specification:
Range of temperature : - 4°C / + 6°C
Cutting angle : 10° - 40°
Voltage : 230/1/50 Hz - 115/1/60 Hz
Pneumatic : 700 kPa / 120 liters per minute
The slicing machine consists of:
A) Complete stainless steel frame with adjustable feet.
B) Slicing unit with feeding conveyor.
C) Conveyor system for sliced salmon.
D) Out feeding roller system for card boards.
E) Stainless steel switch boxes (IP65) for pneumatic and PLC
with integrated heating system.
