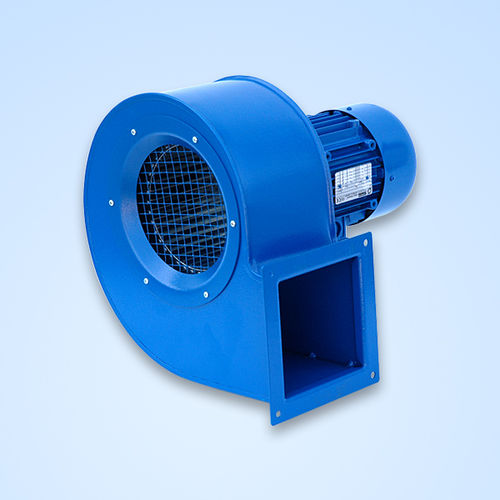

ATEX fan DCF / DCS series

centrifugalcoolingdrying

APPLICATIONS: The fans of these series are suitable for sucking clean air and they are mainly used in ventilation and drying plants, for materials cooling, for the removal of welding smoke, in the plastic working machines, in the aspiration hoods and in general when it is requested to convoy air with low pressure. In the standard execution, the temperature of the sucked fluid must not exceed 80°C. TECHNICAL FEATURES: Scroll made in beaded and welded sheet steel, impeller with forward curved blades made in galvanized sheet steel dynamically balanced, motor support (when present) made in welded sheet steel and steel sections. OPERATING RANGE: Pt = 5 - 140 mm. H2O - Q = 110 - 13.000 mc/h EXECUTIONS: The fans of these series are equipped with three-phase asynchronous electric motors according to UNEL-MEC standards coupled directly or by transmission to the impeller. They can be built with clockwise (RD) or anticlockwise (LG) rotation and they can be oriented from 45° to 45°. On request single-phase electric motors till size 90 can be supplied. SPECIAL EXECUTIONS: For all the fans of these ranges special executions may be possible, like the construction in stainless steel or for high temperatures and the ATEX execution for the zones 1-21 or 2-22.
