ATEX fan CPF series
centrifugalcoolingextraction

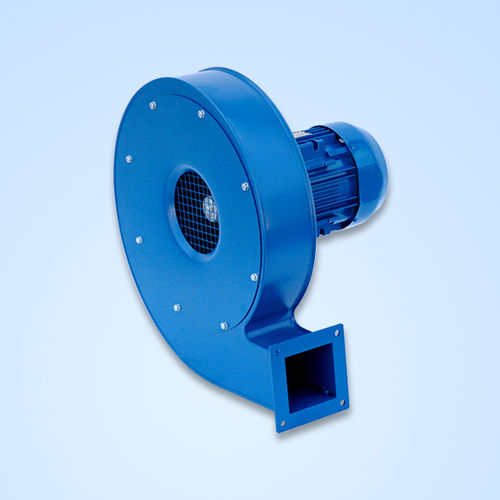

ATEX fan - CPF series - SAMA - centrifugal / cooling / extraction
ATEX fan - CPF series - SAMA - centrifugal / cooling / extraction
ATEX fan - CPF series - SAMA - centrifugal / cooling / extraction - image - 2
Add to favorites
Compare this product


Characteristics

Type
ATEX
Configuration
centrifugal
Function
cooling, extraction
Material
steel
Air flow

1,300 m³/h
(45,909.067 ft³/h)

Description

APPLICATIONS: The fans of this series are suitable for sucking clean air and they are mainly used for materials cooling, for the removal of welding smoke, in the plastic working machines, for the combustion air in burners and in general when it is requested to convoy air with low-medium pressure. In the standard execution, the temperature of the sucked fluid must not exceed 80°C. TECHNICAL FEATURES: Scroll made in beaded and welded sheet steel, impeller with forward curved blades made in galvanized sheet steel dynamically balanced. OPERATING RANGE: Pt = 30 - 300 mm. H2O - Q = 70 - 1.300 mc/h EXECUTIONS: The fans of this series are equipped with three-phase asynchronous electric motors according to UNEL-MEC standards coupled directly or by transmission to the impeller. They can be built with clockwise (RD) or anticlockwise (LG) rotation and they can be oriented from 45° to 45°. On request single-phase electric motors till size 90 can be supplied. SPECIAL EXECUTIONS: For all the fans of this range special executions may be possible, like the construction in stainless steel or for high temperatures and the ATEX execution for the zones 1-21 or 2-22.
