Megapixel camera ExCam® IPQ1785
for hazardous areasWDRsurveillance

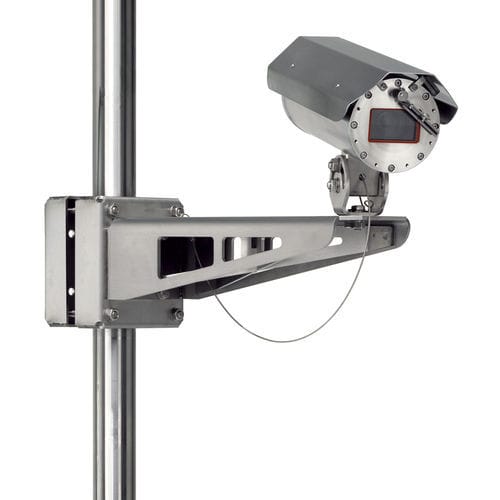

Megapixel camera - ExCam® IPQ1785 - SAMCON Prozessleittechnik - for hazardous areas / WDR / surveillance
Megapixel camera - ExCam® IPQ1785 - SAMCON Prozessleittechnik - for hazardous areas / WDR / surveillance
Megapixel camera - ExCam® IPQ1785 - SAMCON Prozessleittechnik - for hazardous areas / WDR / surveillance - image - 2
Megapixel camera - ExCam® IPQ1785 - SAMCON Prozessleittechnik - for hazardous areas / WDR / surveillance - image - 3
Megapixel camera - ExCam® IPQ1785 - SAMCON Prozessleittechnik - for hazardous areas / WDR / surveillance - image - 4
Megapixel camera - ExCam® IPQ1785 - SAMCON Prozessleittechnik - for hazardous areas / WDR / surveillance - image - 5
Megapixel camera - ExCam® IPQ1785 - SAMCON Prozessleittechnik - for hazardous areas / WDR / surveillance - image - 6
Add to favorites
Compare this product


Characteristics

Applications
for hazardous areas
Technology
WDR
Function
surveillance
Spectrum
visible
Interface
PoE, IP
Resolution level
1920 x 1080
Other characteristics
day/night, zoom, megapixel, IP66, explosion-proof, optical zoom, ATEX, autofocus

Description

The ExCam IPQ1785 is a powerful IP-megapixel camera (2 megapixels) for use in hazardous areas – not only offering superb HDTV resolution (1920 x 1080) but also a powerful motor zoom and auto focus lens (32x optical zoom). The ExCam IPQ1785-W (Wash & Wipe) is equipped with a wiper and prepared for common use with our washing fluid supply unit cam.Cleaner. The ExCam series is certified according to European regulations (ATEX) as well as international ones (IECEx). These and more available certificates can be found in the download area. Features. > Broad Certification Landscape for Hazardous Areas (ATEX, IECEx & EAC-Ex and more) > Powerful Wiper Solution with Torque Control > Arctic-Temperature-Control (-60°C) > Single-Cable-Solution (PoE / 24VDC) > Protection Level of IP66/68 (IEC 60529) > High Resolution: 1920x1080 (HDTV 1080p) > Powerful Motor-Zoom-Autofocus-Lens (32x Optical) > Lightfinder and WDR Technologies > Easy VMS Integration Explosion-proof IP-camera with ATEX-, IECEx- and EAC-Ex-certification Besides the European regulations (ATEX), the ExCam series is also certified according to international regulations (IECEx) as well as the Russian custom-union (EAC-Ex). The housings’ certification comprises ATEX group I (mining) with a low risk of mechanical threat and ATEX group II (Gas and Dust) for zone 1, 2 as well as 21 and 22 including the explosion groups IIC / IIIC with a high risk of mechanical threat. In addition, certification can be extended at any time to cover different markets. For South Africa, for example, this has already been achieved with the MASC (Mining and Surface Certification).
