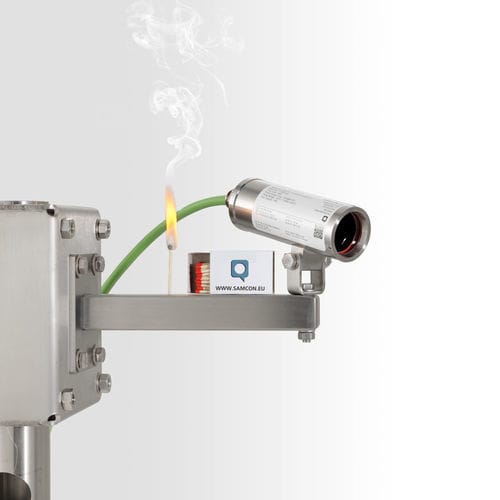

Thermal camera RoughCam® IPP1280

industrialanalogmonitoring

The RoughCam IPP1280 is a thermal network camera for use in industrial areas – offering all advantages of thermal detection. The RoughCam IPP1280 is a modular Network-Camera. This means that it consists of two units: the ultra compact sensor unit (lens and image sensor) and the main unit (network, power and memory card slot). Features. > Extremely Robust > Ultra-Compact and Leightweight Sensor Unit in Combination with a Main Unit > Thermal Technology for Low False Alarm Rate > Single-Cable-Solution (PoE) > Protection Level of IP68/IP66 (IEC 60529) > Resolution thermal: 208x156 Extremely Robust IP-Camera During the RoughCam IPP1280’s development stage the focus was clearly laid on security aspects as well as mechanical precision and high-quality stainless steels. In addition, the modular design of the housing components prior to the camera’s development allows a free combination of the individual housing components such as different flanges in combination with the housing body - without any limitations regarding explosion protection. Various Applications Thermal cameras can be used for various applications, completely independant from lightning conditions. In security services a thermal camera can optimally complete a visual camera. Reliable Thermal Images The RoughCam IPP1280 delivers a reliable detection any time of day and night. It sees even in complete darkness! It is ideally suitable for monitoring the temperature of large surfaces because it doesn`t control the temperature punctually but in the whole recording area. The camera recognises immediatly a rise in temperature.
