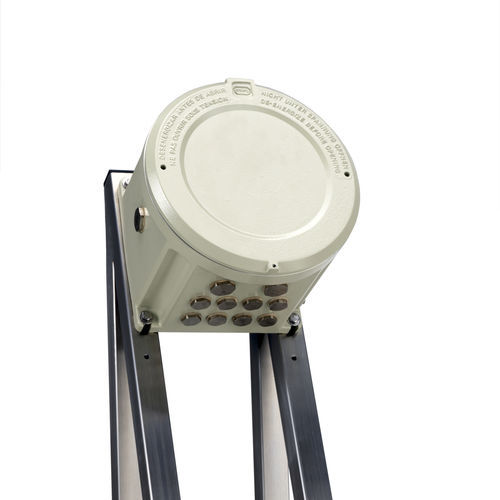

Wall-mounted enclosure T04 ExConnection® 4P

for DIN railcylindricalnetwork

The T04 ExConnection Rail series is a high-performance PoE-switch for use in hazardous areas. It has been developed to connect our explosion-proof network cameras. The ExConnection Rail series is approved according to Directive 2014/34/EU (ATEX) and IECEx. Features. > ATEX, IECEx and EAC-Ex Certification for Hazardous Areas > High Power-POE-Switch > Flameproof Enclosure for Wall Mount > Protection Level IP 66 > Use even at Arctic Temperatures (-60°C) > 24 VDC Power Supply for 4x Camera Heaters Long-distance connection possible The centrepiece of the ExConnection Rails is a high-performance PoE-network-switch. The connection can be realized across long distances regardless of media. The network connection can be implemented via optical fibers, copper-bound Ethernet or WLAN. As an option, the FX ports can also be executed to reflect the ignition protection category [op is]. Hardware The Ex-d-rated housing is made from copper-free, seawater-resistant aluminum and ready for wall mounting. The ExConnection Rail contains the PoE-switch, power supplies, fuses, coupling relays, and, if necessary, media converters or WLAN access points.
