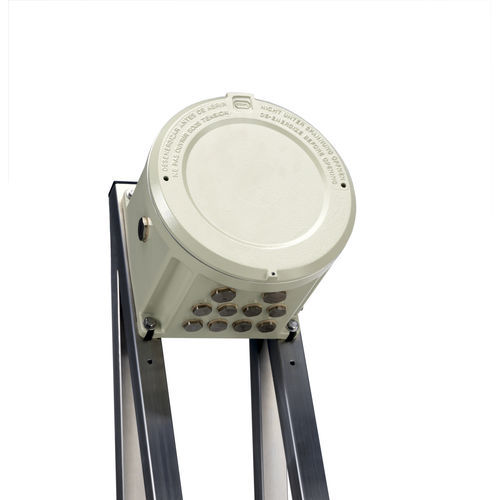

Wall-mount enclosure T04 ExConnection® 8P

for DIN railcylindricalaluminum

The T04 ExConnection Rail series is a high-performance PoE-switch for use in hazardous areas. It has been developed to connect our explosion-proof network cameras. The ExConnection Rail series is approved according to Directive 2014/34/EU (ATEX) and IECEx. Features. > ATEX, IECEx and EAC-Ex Certification for Hazardous Areas > High Power-POE-Switch > Flameproof Enclosure for Wall Mount > Protection Level IP 66 > Use even at Arctic Temperatures (-60°C) > 24 VDC Power Supply for 8x Camera Heaters Long-distance connection possible The centrepiece of the ExConnection Rails is a high-performance PoE-network-switch. The connection can be realized across long distances regardless of media. The network connection can be implemented via optical fibers, copper-bound Ethernet or WLAN. As an option, the FX ports can also be executed to reflect the ignition protection category [op is]. Hardware The Ex-d-rated housing is made from copper-free, seawater-resistant aluminum and ready for wall mounting. The ExConnection Rail contains the PoE-switch, power supplies, fuses, coupling relays, and, if necessary, media converters or WLAN access points. Optional accessories Our ExConnection Rails as well as the connected camera-systems can require different power supply. Existing systems are often provided with 24 VAC, modern systems with 24 VDC or 230 VAC. This applies to both, ConnectionRails and camera systems. We are able to realize all these voltage levels for you independent from requirements. The power supply also allows to integrate a self-regulating heater to meet extremly low temperature ranges ( up to -60°C).
