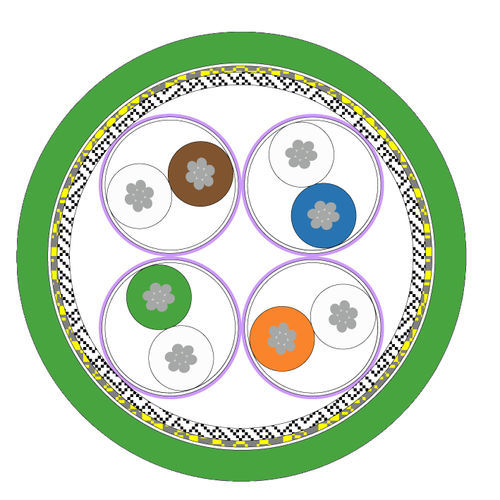

Data electrical cable SKD05-HT

Ethernetgigabit Ethernetoil-resistant

The cable SKD05-HT is a system cable for connecting digital camera systems and was particulary developed to be used in hazardous areas. It meets the requirements for cables and wires according to DIN EN 60079-14. When using the applicable cable gland, it is possible to insert the cable directly into flameproof enclosures. It is hightemperature resistant (up to +150°C). The SKD05-HT is a high speed cable for industrial Ethernet for fixed installations in dry, wet, or damp rooms. The cable meets the transmission characteristics for Category 6 of IEC 61156-5 Ed. 2 even at -50°C. It has an excellent resistance against mechanical stress, oils as well as greases and is flame retardant. Features. > Meets the requirements for cables in hazardous areas in accordance to IEC/EN 60079-14 Chapter 9.3. > Highly temperature resistant (up to +150°C) > Sunlight resistant in accordance to UL 2556 Sec. 4.2.8.5 (720 h). > Flame retardant in accordance to IEC 60332-1-2. > Oil resistant in accordance to IEC 60811-2-1 (IRM 902, 4 h bei 70°C). > Mud resistant in accordance to NEK 606. > Tested for the standards: IEEE 802.3: Ethernet 10Base-T; Fast Ethernet 100Base-T; Gigabit Ethernet 1000Base-T @ 60 m. > Tested for IEEE 802.3at. PoE+, max. 30 W per channel, max. 60 m. Application areas: IEEE 802.3 : Ethernet 10Base-T ; Fast Ethernet 100Base-T ; Gigabit Ethernet 1000Base-T IEEE 802.5 : 16 MB; ISDN ; FDDI ; ATM ; Cable sharing IEEE 802.3at : PoE suitable
