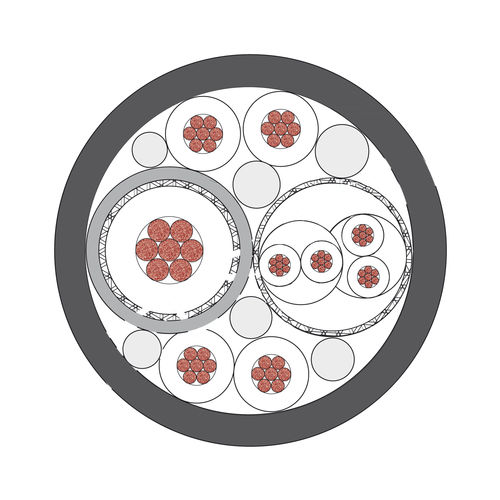

Data electrical cable SKA02
DINflameprooftwisted pair

Data electrical cable - SKA02 - SAMCON Prozessleittechnik - DIN / flameproof / twisted pair
Data electrical cable - SKA02 - SAMCON Prozessleittechnik - DIN / flameproof / twisted pair
Add to favorites
Compare this product


Characteristics

Type
data
Format
DIN
Protection
flameproof
Configuration
twisted pair
Core material
copper
Applications
for hazardous areas
Color of the insolation
black
Norms
IEC, EN 60332
Other characteristics
UL, ISO
Nominal voltage

800 V

Temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Cross-section

0.25 mm², 0.75 mm²
(0 in², 0 in²)

Description

The cable SKA02 is a system cable for connecting analog camera systems and was particularly developed to be used in hazardous areas. It meets the requirements for cables and wires according to DIN EN 60079-14. When using the applicable cable gland, it is possible to insert the cable directly into flameproof enclosures. Features. > Meets the requirements for cables in hazardous areas in accordance to IEC/EN 60079-14 Chapter 9.3. > Constructed with an additional power channel: Square: 3 x 1.5 mm², Color code: BK-BU-GN/YE. Standards: EN 60079-14:2014 „Electrical installations design, selection and erection IEC 60079-14:2013 „Electrical installations design, selection and erection EN 50288-10-1; IEC 61156-5 ; EN 50173 ; ISO/IEC 11801 2. edition EN 60332-1-2 ; IEC 60754-2; UL AWM 21586 Chemical characteristics: Oil resistant in accordance to VDE 0472 Section 803 (Toil max = 100°C, IRM2, testperiod of 7 days 40% elongation and 40% tensile strength); Flame retardant in accordance to IEC 60332-1-2 (1kW flame); UV-resistant; halogenfree, microben and hydrolysis resistant Labeling: SAMCON GmbH SKA02 +Art.-Nr. 0001004033 / Koax 75OHM 2x2x0,25mm² +4x0,75mm² Design: Outer jacket: PUR Color outer sheat: black, similar to RAL 9005 matt Color of the printing: TSD white Outer diameter: ca. 9.4 ± 0.30 mm Twisting: coax. + Twisted Pair + Power + fleece banding + sheat Video signal cable: Typ: coaxial Core: 19x0.127 mm tinnend = AWG24 Dielectric material: Polyolefine Core diameter dielectric: 2.80 ± 0.10 mm Color dielectric: nature Shield: plated copper braid, 90% density Sheath material: TPE-black Sheath diameter: 4.00 mm Impedance: 75 Ohm Capacitance: 58 pF/m
