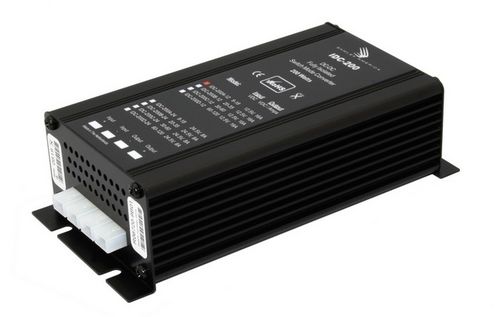

Chassis-mounted DC/DC converter IDC-200A-12

step-downinsulated

The Samlex IDC-200 series is a complete line of high efficiency 200 Watt isolated DC-DC converters which are suitable for applications requiring galvanic isolation between the input and output. This unit provides a highly regulated output DC voltage of 12.5 Volts, for an input DC voltage range of 9-18 Volts and rated output current of 16 Amps- at 18 Volts input. Benefits include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE. This unit comes with push-on flat blade quick disconnect connectors.
