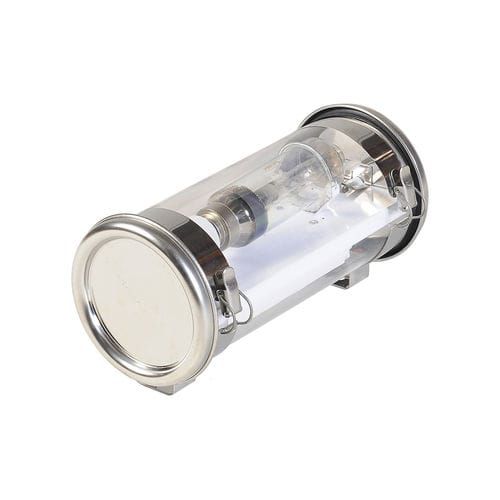

Light fitting lighting BECQUEREL

LEDoutdoorIP68

Impervious tubular light fitting for low pressure sodium lamps TUBULAR Increased mechanical resistance Easy to clean Limited dirt accumulation 360° orientation IMPERVIOUS (IP68) Absolute imperviousness Maximum light output Adapted for pressure cleaning No internal dust accumulation ROBUST Mechanical assembly insensitive to external mechanical and/or chemical aggression DURABLE Single piece casing, material and components selected to ensure long-term investment Housing • Ø133mm crystal quality polycarbonate diffuser with anti-UV treatment • End caps 1/2 ring press-formed in 304L stainless steel (316L also available) Gear tray • White powder coated steel sheet gear tray acting as a reflector • Compensated ferromagnetic gear unit for low-pressure sodium lamps • Internal high temperature wiring with glass fiber Installation – Maintenance •Connection to 3×2, 5 mm² terminal block • Attachment with 2 bolt-fitted stainless steel straps with a screw closure model •Maintenance by removal of the end cap ELECTRICAL CLASS Class 1 LAMP TYPE 1 B22 sodium low pressure lamp FIRE RESISTANCE Polycarbonate 960°C Coex. polycarbonate/PMMA 650°C PROTECTION IP66, IP68 and IP69K SHOCK RESISTANCE IK10 OPERATING TEMPERATURE T°C MAX +40°C
