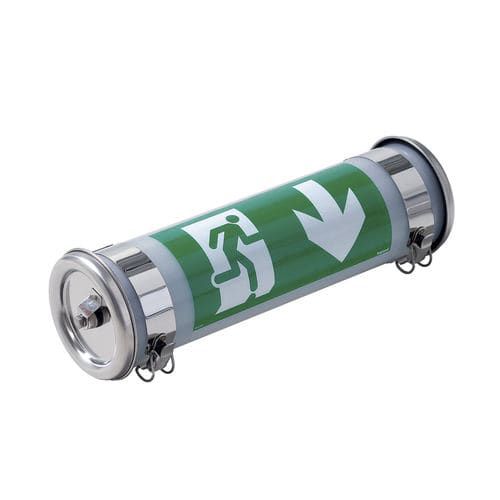

Emergency lighting MAXWELL 100 LSC BT

LEDpolycarbonatetubular

Optimum temp. -60 °C to -20 °C Application Open area and escape route Power supply Central battery system Technology LED Emergency output 400 lm KEY FEATURES ■ Plug and Play installation with disconnectable plug ■ Infrequent maintenance ■ Resistant to detergents ■ Durable and maintainable luminaires TECHNICAL FEATURES Light source ■ LED modules for cold operation developed by Sammode ■ L80 ■ Replaceable modules Optics Special satinised LED diffuser Thermal management Aluminium heat sink Power supply 24 V DC Electrical class Class III Operating temperature -60 °C to +25 °C Connection ■ Nickel-plated brass cable gland Cable Ø 5-14 mm Terminal block 2 x 4 mm² ■ Disconnectable plug Cable Ø 8-10mm Terminal block 2 x 1,5mm² Fixing 2 spring-loaded stainless steel fixing straps Method of construction ■ Single-piece housing with high mechanical resistance ■Long-term sealing maintained by axial screwing MATERIALS Diffuser Polycarbonate End caps, fixing straps, etc. 304L stainless steel Gaskets EPDM STANDARDS Sealing IP68 Shock resistance IK10 Fire resistance 960 °C Compliant with EN 60 598-1, EN 60598-2-22 Type: Maintained and non-maintained
