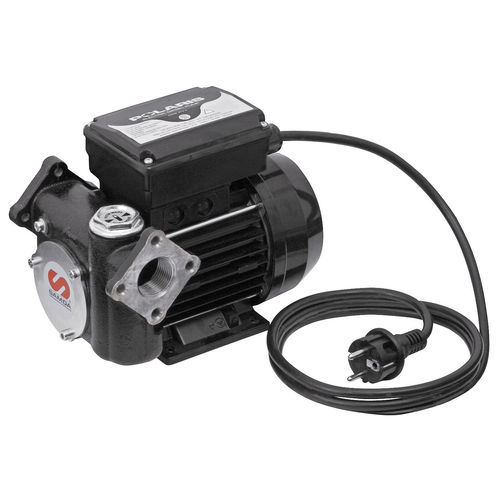

Rotary vane pump 685721 seriesoildieselself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Fluid
- oil
- Operation
- diesel
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- for cleaning, treatment, outlet
- Material
- steel
- Voltage
- 230 V
- Other characteristics
- suction, flange, adjustable, filter
- Flow
50 l/min, 70 l/min, 95 l/min
(13.2086 us gal/min, 18.49204 us gal/min, 25.09634 us gal/min)- Power
370 W, 500 W, 750 W
(0.5 hp, 0.68 hp, 1.02 hp)
Description
Self priming pumps with self-adjustable vanes. Pump body made of cast-iron with rustproof treatment, rotor of sintered steel and vanes of acetyl resin. The pump includes a by-pass valve and a built in filter with easy access for cleaning. The pump can be mounted vertically or horizontally and has 1,8 m cable with plug. Inlet/outlet connection: 1" BSP (F) or flange coupling. Maximum suction lift: 2,5 m. Electric AC motor with IP-55 protection, allows continuous operation duty. On / off switch and fuse.
