Mechanical meter 366855
oval gear

mechanical meter
mechanical meter
Add to favorites
Compare this product


Characteristics

Technology
mechanical, oval gear

Description

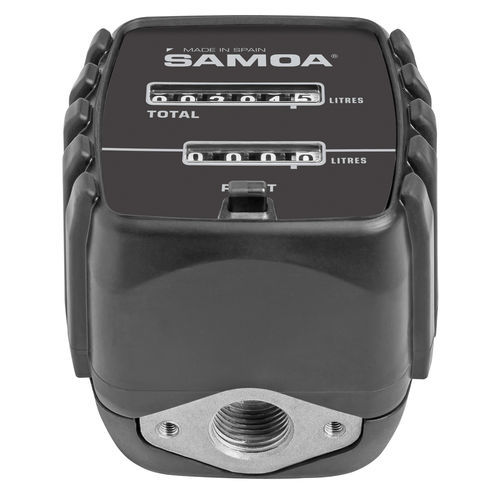

Oval gear meter with mechanical odometer style register for use with lubricants up to SAE 140. Resettable partial reading up to 999.9 litres and non-resettable totalizer. Meters are factory calibrated for maximum accuracy and include protective rubber shroud. Rough TPE boot surrounds the entire meter for even greater durability. Wetted materials - Aluminium, NBR, Acetal, Stainless steel Maximum free flow delivery - 27 l/min (7.1 gal/min) Flow range - 1 - 27 l/min (0.26 - 7.1 gal/min) Weight - 0.65 kg (1.43 lb) Operating Temperature Range - -10 - 60 °C (14 - 140 °F) Metric - LITRES Fluid inlet - 1/2" BSP (F) Accuracy - 0.01 Fluid outlet - 1/2" BSP (F) Fluids - Lubricant oil, Gear oil, Transmission fluid, Coolant, Hydraulic oil Meter - MECHANICAL Pulses per litre - N/A Maximum outlet pressure - 70 bar (1015 psi)

Catalogs
