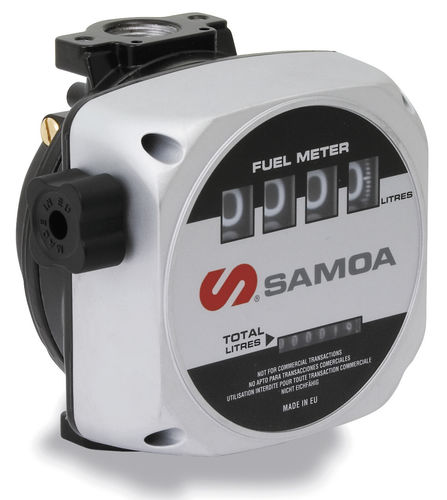

Digital meter 680301

mechanical

Nutating-disk meter for diesel with mechanical register. Very low pressure drop; it can be used for gravity fed applications. Resetable partial reading up to 999,9 litres and permanent 6 digit totaliser. 1" BSP (F) inlet and outlet, both with flange for optional flange mounting. The meter allows to orientate the inlet and outlet in four different positions. Maximum free flow delivery - 100 l/min (26.4 gal/min) Wetted materials - Technopolymer, Aluminium Accuracy - 0.01 Maximum outlet pressure - 10 bar (145 psi) Fluids - Diesel Operating Temperature Range - -10 - 60 °C (14 - 140 °F) Weight - 2.27 kg (5 lb) Pulses per litre - 10 Meter - MECHANICAL Fluid outlet - 1/2" BSP (F) Metric - LITRES Fluid inlet - 1/2" BSP (F) Flow range - 20 - 100 l/min (5.28 - 26.4 gal/min)
