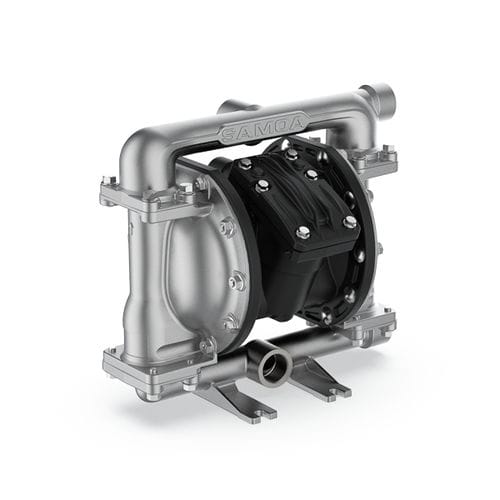

Double-diaphragm pump UP10 1"waterfor chemicalsslurry
Add to favorites
Compare this product
Characteristics
- Technology
- double-diaphragm
- Fluid
- water, for chemicals, slurry, for lubricants, fuel, for powders
- Operation
- air-driven
- Priming
- self-priming, submersible
- Mobility
- stationary
- Domain
- industrial, for the chemical industry, for maritime applications, for water treatment, for the petrochemical industry, for the mining industry, for the glass industry, for the metallurgical industry, for the paper industry, for the cosmetics industry, for the construction industry, for the printing industry, for foundry applications, for public works, for the steel industry, for the textile industry
- Applications
- filling, transfer, process, sanitation, IBC, drainage, high-volume, for hazardous locations, circulation, distribution, level control, sewage, drain, for low-pressure applications, cleaning, recycling, surface treatment, for printing machines, for harsh environments, unloading, dewatering, recirculation, recovery, chemical process, suction
- Material
- stainless steel
- Fluid specification
- for aggressive media, for abrasive fluids, flavouring, for firefighting foam, for low-viscosity fluids, for corrosive fluids, froth, for mineral oil, for AdBlue, pressure powered, for flammable fluids, for used oil, for engine oil, for paper stock, for fluids with lubricating properties, coagulant, for refrigerant fluids, for toxic fluids, dye, for brine
- Protection level
- abrasion-resistant, submersible, ATEX, robust
- Other characteristics
- high-performance, compact, high-efficiency, high-reliability, mobile, horizontal mount, small, seal-less, slurp, flange, double-acting, heavy-duty, four-ball, low-vibration, skid-mounted, adjustable-flow, low-noise, OEM, high-capacity, rugged, for fluids, self-adjusting, variable-flow, high-flow, oil-free, rugged, corrosion-proof
- Flow
200 l/min
(52.83441 us gal/min)- Pressure
Min.: 1 bar
(14.504 psi)Max.: 8 bar
(116.03 psi)- Head
8 m
(26'02" )- Input diameter
25 mm
(0.984 in)- Output diameter
25 mm
(0.984 in)- Length
209 mm
(8 in)- Width
348 mm
(13.7 in)- Height
317 mm
(12.48 in)- Weight
11.5 kg
(25.35 lb)
Description
The 1” (25 mm) Air Operated Double Diaphragm Pumps made of cast metal can reach a flow rate of up to 200 l/min (52 gal/min) and they offer a wide range of construction materials and porting
configurations. The pump design ensures high abrasion resistance when pumping abrasive media and low flow resistance.
Opposite inlet and outlet ports as standard. The discharge and inlet manifolds can rotate 180º for maximum pump installation versatility.
These pumps are often used for transferring, filling, recirculating and batch dispensing in a variety of industries.
VIDEO
Catalogs
No catalogs are available for this product.
See all of SAMOA Industrial, S.A.‘s catalogsOther SAMOA Industrial, S.A. products
METALLIC DIAPHRAGM PUMPS | PIVOT SERIES
