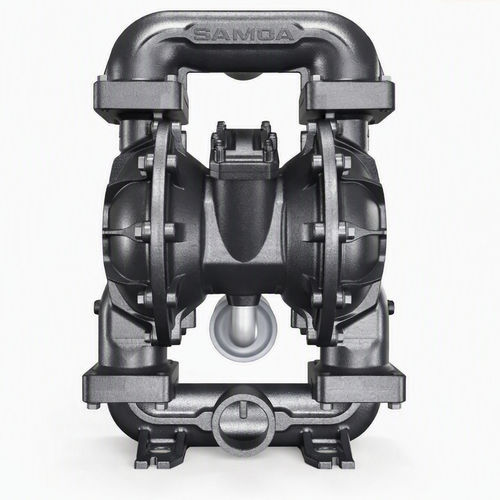

Double-diaphragm pump UP30 3"waterfor chemicalsslurry
Add to favorites
Compare this product
Characteristics
- Technology
- double-diaphragm
- Fluid
- water, for chemicals, slurry, for lubricants, for powders
- Operation
- pneumatic
- Priming
- self-priming, submersible
- Mobility
- stationary
- Domain
- for water treatment, industrial, for the steel industry, for public works, for the chemical industry, for the petrochemical industry, for the glass industry, for foundry applications, for the metallurgical industry, for the paper industry, for the cosmetics industry, for the construction industry, for the printing industry, for the textile industry, for maritime applications
- Applications
- circulation, transfer, for lubrication systems, process, sewage, drain, IBC, filling, sanitation, recovery, for hazardous locations, cleaning, dewatering, recirculation, lubrication, for recycling, for printing machines, refueling, level control, surface treatment, for low-pressure applications, high-volume, chemical process, suction, for harsh environments, drainage
- Material
- stainless steel, aluminum, PP, metal
- Fluid specification
- for solids-laden fluids, for aggressive media, for abrasive fluids, for low-viscosity fluids, coagulant, for engine oil, pressure powered, dye, for firefighting foam, for corrosive fluids, cutting fluid, for brine, flavouring, for paper stock, for mineral oil, for toxic fluids, for AdBlue, for flammable fluids, for fluids with lubricating properties, for used oil, for refrigerant fluids
- Protection level
- abrasion-resistant, ATEX, robust, immersible
- Other characteristics
- flange, compact, suction, for fluids, variable-flow, four-ball, skid-mounted, high-efficiency, seal-less, horizontal mount, small, high-performance, heavy-duty, OEM, high-flow, high-capacity, self-adjusting, oil-free, high-reliability, low-noise, corrosion-proof, double-acting, mobile, rugged, adjustable, low-vibration, rugged
- Flow
1,000 l/min
(264.17205 us gal/min)- Pressure
Max.: 8 bar
(116.03 psi)Min.: 1.5 bar
(21.756 psi)- Head
Max.: 8 m
(26'02" )Min.: 6 m
(19'08" )- Input diameter
3 in
- Output diameter
3 in
- Length
Max.: 436 mm
(17 in)Min.: 436 mm
(17 in)- Width
Max.: 575 mm
(22.64 in)Min.: 575 mm
(22.64 in)- Height
Max.: 905 mm
(35.63 in)Min.: 820 mm
(32.28 in)- Weight
Max.: 125 kg
(275.58 lb)Min.: 68 kg
(149.91 lb)
Description
The PIVOT Series 3” AODD Pumps are available in metallic materials such as aluminium, and stainless steel, with a wide range of diaphragms, seats, and balls options offering broad fluid and application. Metallic pumps are highly suitable for outdoors and general applications with presence of abrasives.
The main advantages of our PIVOT Series AODD pumps are:
• - Air motor with exclusive frictionless pivot-shaft air valve resulting in:
o - Larger flow delivery
o - Smooth pump operation
o - Reduced flow pulsation
o - No pump vibration
o - Low pressure start-up
o - No stall
o - No icing
o - Easy and fast service
• - Universal pump standards
o - Matches relative dimensions of main competitive brands, allowing easy swap-over.
Allowing easy swap-over and upgrade of your old pumps
• - Optimized design for maximum performance
• - Top quality materials for long-life and reliability
ATEX certified versions available
All PIVOT Series pumps can be configured to connect a Smart Pump-Controller System to actuate, control and monitor your pumps.
