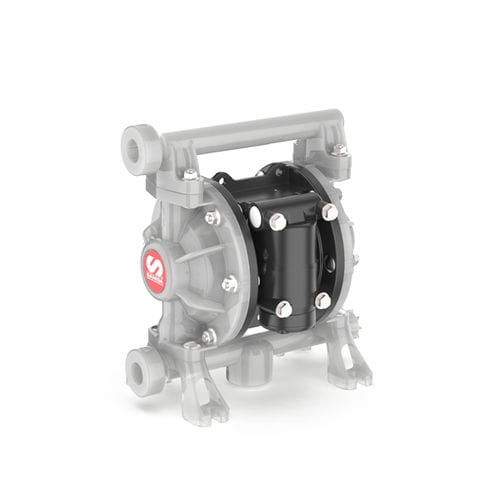

Double-diaphragm pump UP03 3/8"

waterfor chemicalsslurry

PIVOT Series 3/8” Air-operated double diaphragm (AODD) pumps are available in non-metallic materials, such as Polypropylene, Conductive Polypropylene, Conductive Acetal and PVDF, with an extensive range of diaphragms, seats and balls. They offer a wide range of applications and fluid compatibility. These pumps are very suitable for aggressive chemicals with the presence of abrasives. UP03 3/8” AODD pumps make the difference through: • - Exclusive Frictionless PIVOT-SHAFT Air Valve that results in: o - Bigger flow delivery. o - Smooth operation. o - Reduced flow pulsations. o - No pump vibration. o - Low-pressure start up. o - No icing. o - Easy and fast service. • - Lateral fluid inlet and outlet ports avoid leaking directly onto the pump. • - Universal standards: o - Matches relative dimensions of main competitive brands, allowing easy swap-over. o - Allow for easy swapping and upgrading of your old pumps. • - Optimized design for maximum performance. • - Premium materials for a long and reliable life ATEX certified versions available Can be configured to connect a Smart Pump-Controller System to actuate, control and monitor your pumps.
