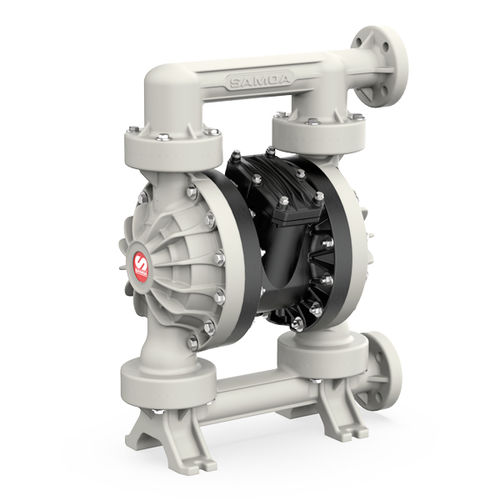

Double-diaphragm pump UP20 2"PVDFwaterfor chemicalsslurry
Add to favorites
Compare this product
Characteristics
- Fluid
- water, for chemicals, slurry, for lubricants
- Operation
- pneumatic
- Priming
- self-priming
- Technology
- double-diaphragm
- Mobility
- stationary
- Domain
- for the metallurgical industry, industrial, for the chemical industry, for water treatment, for the paper industry, for the cosmetics industry, for the construction industry, for the glass industry, for the printing industry, for the textile industry, for the steel industry, for maritime applications, for foundry applications, for public works
- Applications
- distribution, transfer, process, circulation, sewage, drain, for hazardous locations, surface treatment, drainage, IBC, high-volume, recycling, recirculation, unloading, for low-pressure applications, level control, cleaning, lubrication, dewatering, for lubrication systems, recovery, chemical process, suction, refueling, for harsh environments, sanitation, for printing machines
- Material
- PVDF
- Fluid specification
- for solids-laden fluids, for aggressive media, for abrasive fluids, for low-viscosity fluids, for corrosive fluids, for firefighting foam, for powders, cutting fluid, for engine oil, for brine, pressure powered, flavouring, for mineral oil, coagulant, for AdBlue, for fluids with lubricating properties, for flammable fluids, for toxic fluids, for used oil, for refrigerant fluids, dye, for paper stock
- Protection level
- abrasion-resistant, submersible, ATEX, robust
- Other characteristics
- compact, high-efficiency, corrosion-proof, horizontal mount, seal-less, high-reliability, small, high-performance, flange, low-noise, skid-mounted, OEM, low-vibration, rugged, adjustable-flow, high-flow, oil-free, double-acting, high-capacity, for fluids, rugged, mobile, heavy-duty
- Flow
650 l/min
(171.71183 us gal/min)- Pressure
Max.: 7 bar
(101.526 psi)Min.: 1.5 bar
(21.756 psi)- Head
Max.: 8 m
(26'02" )Min.: 5 m
(16'04" )- Input diameter
2 in
- Output diameter
2 in
- Length
350 mm
(14 in)- Width
602 mm
(23.7 in)- Height
808 mm
(31.81 in)- Weight
54 kg
(119.05 lb)
Description
PIVOT Series 2” Air-operated double diaphragm (AODD) available in PVDF with an extensive range of diaphragms, seats and balls. They offer a wide range of applications and fluid compatibility.
These pumps are very suitable for aggressive chemicals with the presence of abrasives.
PIVOT Series 2” PVDF AODD pumps make the difference through:
• Exclusive Frictionless PIVOT-SHAFT Air Valve that results in:
o Higher flow delivery.
o Smooth operation.
o Reduced flow pulsations.
o No pump vibration.
o No stall operation.
o Low-pressure start up.
o No icing.
o Quick and easy servicing.
• Corrosion resistance metallic air motor:
o Air chambers and central body manufactured in Conductive Polypropylene.
o Non-metallic Air valve cartridge.
o Stainless Steel diaphragm-shaft and air pistons.
• Universal standards:
o Matches relative dimensions of main competitive brands, allowing easy swap-over.
o Easy swap-over and upgrading of your old pumps.
• Optimized design for maximum performance.
• Premium materials for a long and reliable service life.
ATEX certified versions available
Can be configured to connect a Smart Pump-Controller System to activate, control and monitor your pumps
