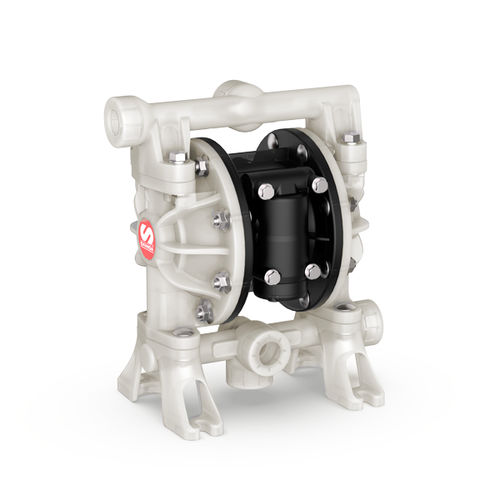

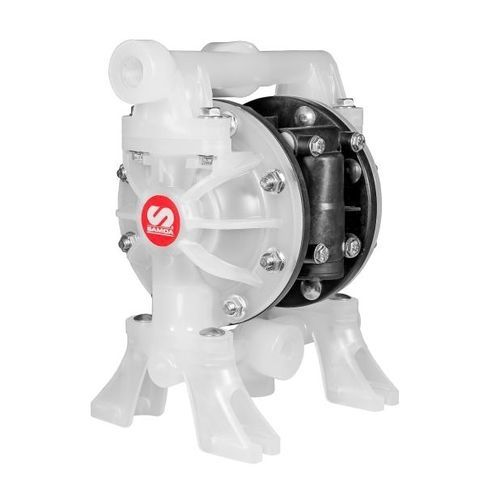

Double-diaphragm pump UP05 1/2"
waterfor chemicalsslurry

double-diaphragm pump
double-diaphragm pump
double-diaphragm pump
double-diaphragm pump
double-diaphragm pump
Add to favorites
Compare this product


Characteristics

Fluid
water, for chemicals, slurry, lubricating oil, fuel, for biogas
Operation
pneumatic
Priming
self-priming, submersible
Technology
double-diaphragm
Mobility
stationary
Domain
for the chemical industry, industrial, for water treatment, for the petrochemical industry, for the mining industry, for the paper industry, for the construction industry, for the textile industry, for maritime applications, for the steel industry, for renewable energy
Applications
drain, transfer, process, for low-pressure applications, for lubrication systems, recirculation, surface treatment, for printing machines, circulation, recovery, high-volume, for harsh environments, for hazardous locations, distribution, IBC, for recycling, suction, refueling, level control, sewage, filling, cleaning, lubrication, dewatering, sanitation, unloading, drainage, chemical process
Material
PVDF
Fluid specification
for low-viscosity fluids, for aggressive media, for abrasive fluids, for fluids with lubricating properties, for heavy fluids, for powders, for solids-laden fluids, for refrigerant fluids, coagulant, for brine, for corrosive fluids, for paper stock, dye, flavouring, cutting fluid, for mineral oil, for AdBlue, for engine oil, for firefighting foam, for flammable fluids, for toxic fluids, for used oil, pressure powered, for hazardous fluids
Protection level
chemical-resistant, submersible, ATEX, robust
Other characteristics
high-efficiency, horizontal mount, small, high-capacity, non-metal, high-performance, flange, low-noise, OEM, slurp, four-ball, rugged, low-vibration, skid-mounted, adjustable-flow, high-reliability
Flow

54 m³/h
(1,906.992 ft³/h)

Pressure

Min.: 1.5 bar
(21.756 psi)

Max.: 7 bar
(101.526 psi)

Head

Min.: 5 m
(16'04" )

Max.: 8 m
(26'02" )

Length

161 mm
(6 in)

Width

250 mm
(9.84 in)

Height

278 mm
(10.94 in)

Weight

3.7 kg
(8.16 lb)

Description

PIVOT Series 1/2” PVDF Air-operated double diaphragm (AODD) pump manufactured in offers an extensive range of diaphragms, seats and balls. They offer a wide range of applications and fluid compatibility. These pumps are very suitable for aggressive chemicals with the presence of abrasives UP05 ½” PVDF makes the difference through: • - Exclusive Frictionless PIVOT-SHAFT Air Valve that results in: o - Bigger flow delivery. o - Smooth operation. o - Reduced flow pulsations. o - No pump vibration. o - No stall. o - Low-pressure start up. o - No icing. o - Easy and fast service. • - Corrosion-resistant air motor. o - Conductive polypropylene Air Chambers and Central Body. o - Non-metallic Air Valve Cartridge. o - Stainless Steel diaphragm-shaft. • - Undersized pump to fit in any application or reduced space. • - Lateral fluid inlet and outlet ports avoid leaking directly onto the pump. • - Compact design ready to meet any OEM application needs. • - Universal standards: o - Matches relative dimensions of main competitive brands, allowing easy swap-over. o - Allow for easy swapping and upgrading of your old pumps. • - Optimized design for maximum performance. • - Premium materials for a long and reliable life ATEX certified versions available Can be configured to connect a Smart Pump-Controller System to actuate, control and monitor your pumps

VIDEO
