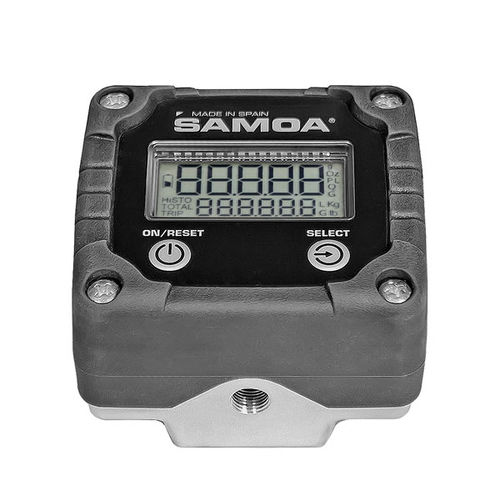

Grease counter EGM700

positive displacementdigitalelectronic

High pressure oval gear grease meter for use as in-line meter with electronic digital display. Forged aluminium measuring chamber with post machining process and housing made of polycarbonate with thermoplastic elastomer overmoulding. Powered by two “AAA” standard alkaline batteries integrated in the body of the meter. The counter has a calibration function and a selection of units of measurement: grams, kilograms, ounces and pounds. The main benefits of this meter are: - - Shock proof. - - Easy to read. - - Increased durability. - - Easy to replace batteries. - - Calibration function. The most relevant technical features of the meter are: - - Flow range: up to 2.5 kg/min (5.5 lb/min). - - Max. pressure: 700 bar (10,150 psi) - - Accuracy: ± 2%. - - Repeatability: ± 0.2% (± 0.2%) - - 1/8" inlet-outlet connection The large LCD display shows the following data: - - Upper digits: larger digits showing the dispensed level. - - Lower digits: smaller digits that can show the resettable total (TRIP) or the permanent total (TOTAL). - - Battery level indicator. - - Selected units of measure: grams, kilograms, ounces or pounds.
