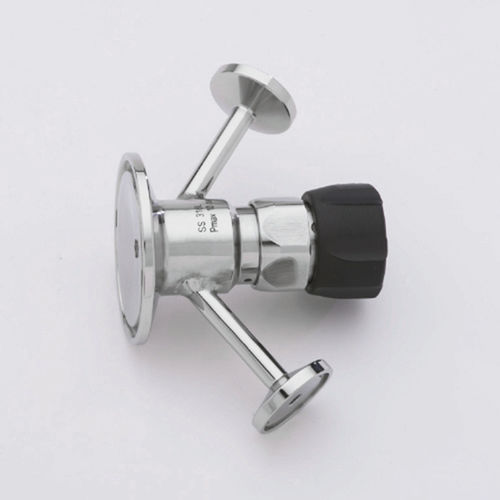

Manual valve 5157 series

samplingchemicalhygienic

The new range of in line liquid sample valves are ideal for pharmaceutical, chemical and other hygienic industries. The valve is supplied with either a manual handle which you turn to take a sample or an auto return lever. The auto return lever automatically closes if the operator to turn off the sampler. EASY TO USE The valves are easily attached to the pipework via a 0.5"" tri ferrule. Open the handle to take the sample. KEY FEATURES 316L stainless steel construction - contact parts Seal is chemically resistant. TFM FDA and EC conforming seal 150 C maximum working temperature Maximum 10 barg pressure Quickly remove for thorough cleaning Please check delivery time (usually 5 - 7 days) Finish Ra < 0.5 on wetted parts Supplied with a certificate of conformity as standard. Extra documentation such as Ra analysis, Material of construction documentation available as an extra cost option. PTFE Seal conforms to US3A and FDA CFR 21. PTFE gives a very high level of chemical resistance and durability Standard Sample Valve (5157A Model): Ideal for general sampling, the standard sample valve can be quickly installed on the pipe line or container. The valve clamps into position. This enables it to be taken off quickly for cleaning. This sample valve comes as standard with either a manual handle or auto return lever. CIP Sample Valve (5157CIP Model): The CIP sample valve has been designed for aseptic sampling. High quality construction, manufacture and design means it can be quickly cleaned in position.
