Liquid sampler 502 series

waterfor environmental analysis

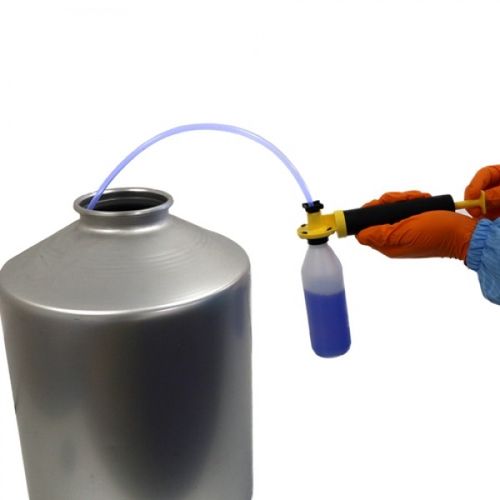

The sampling of water, oils and other low viscosity liquids is easy with the Tank Pump Sampler set. The only product contact parts are the dip tube and the sample collecting bottle. During normal use the hand pump does not come into contact with the liquid that is being sampled. The Tank Sampler set is a quick and convenient way to get contamination free samples. This set comes with a length of PE tube and PE sample collecting bottles, you can choose between 125ml or 250ml bottles. The efficient hand pump is able to draw up liquids from a depth of about 4m. The Tank Sampler Set contains everything you needs to get sampling: 1 x Hand pump 12 x PE Bottle 150ml (set 5021P-150) or 5 x PE Bottles 250ml (set 5021P-250) 1 x PE Tube - 13m length 1 x Tube cutter 1 x Pen for recording results 1 x Carrying Case The Hand Pump is able to operate with tubes with an outer diameter of between 5 and 8mm. NOTE: This sampler must not be used with flammable solvents Cut the tube to the required length. Attach a bottle to the pump. Push one end of the tube through the pump and into the bottle, then drop the other end of the tube into the liquid that is being sampled. Operate the sampler by pumping the handle which will draw liquid up the tube into the bottle. The Pump Sampler is suitable for low to medium viscosity liquids. The only product contact parts are the delivery hose and the sample bottle. The Tank Sampler is ideal for materials like water, light oils, suspensions and liquids.
