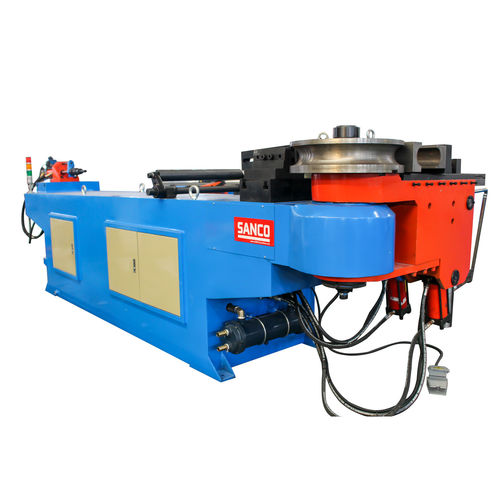

Hydraulic bending machine SB-65NCB

electrictubeNC

Semi-automatic pipe bending machine. Bending pipe by hydraulic, feeding pipe by hand, rotating pipe by hand (electric as optional), clamping pipe by hydraulic, mandrel shift by hydraulic. High bending accuracy up to +/-0.1°. The head of machine is casting. Microcomputer controller with English or any other language. Fan / water / oil cooling for your choice. SIMENS or ABB motor as optional. With Taiwan core tech since 1989. ● Bend-arm (C-axis) by hydraulic, clamp die by hydraulic, pressure die by hydraulic. ● With tube mechanical stopper, automatic mandrel lubrication, anticipated mandrel retraction unit. ● Anticipated mandrel retraction unit. It adopts imported special control system. With high stability. ● Automatic bending tube, manual feeding tube and manual angle rotating. ● Water/Fan cool system. ● Foot pedal for safe start. ● The processing speed is fast and its procession is high. It is suitable for high speed. ● It has functions of manual, inching, auto, setting, changing-program, single step, and so on. ● It is a NC automatic bending machine controlled by PLC, an efficient, economical automatic pipe Bender. ● Operation panel and PLC control system adopted, simple mode menu, accurate, fast, complete functions of hand-Operated, inching, quote setting, changing-program. ● CE, ISO9001 Certification.
