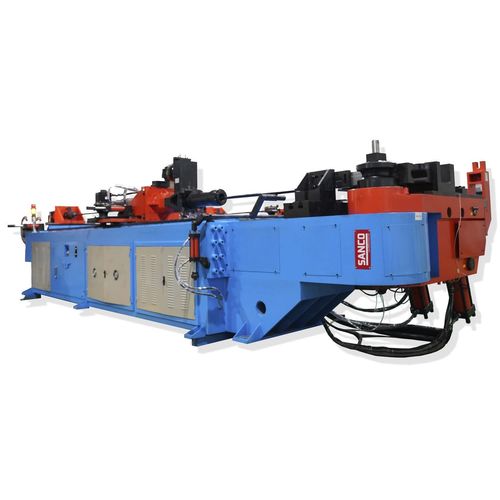

Electro-hydraulic bending machine SB-120CNCSRH

servo-electricfully-electricsteel tube

It is fully automatic pipe bending machine. Bending pipe by hydraulic, feeding pipe by electric, rotating pipe by electric, clamping pipe by hydraulic, mandrel shift by hydraulic. Touch screen with English or any other language, PLC controller (Windows XP Industry PC as optional). Fan / water / oil cooling for your choice. With auto lubrication function. Electric and hydraulic parts from Japan, France and Germany. With Taiwan core tech since 1989. Max bending Φ120X6.5 mm Mandrel length 5000 mm Bending speed 20-30 °/s Feeding speed 150-600 mm/s Rotating speed 25-120 °/s Bending precision ±0.1° Feeding precision ±0.1 mm Rotating precision ±0.1° Max bending degree 190° Working light Input data of Y, B, C or X, Y, Z Automatic lubrication system Pipe material: mild steel, stainless steel, copper, aluminum ... Round / square / rectangle / profile ... pipes and bars CE, ISO90001, UL, EAC marked Safty cover Bend 1.0XD radius, or more tight radius Auto mandrel lubrication system Fan / Water / Oil cooling system Robot loading and unloading Windows XP controller Industry PC (3D tube showing, function of mirror image and reverted image) 3D bending simulation, can read CAD files Connect three coordinates measuring instrument Safe blanket / Infrared alarm device
