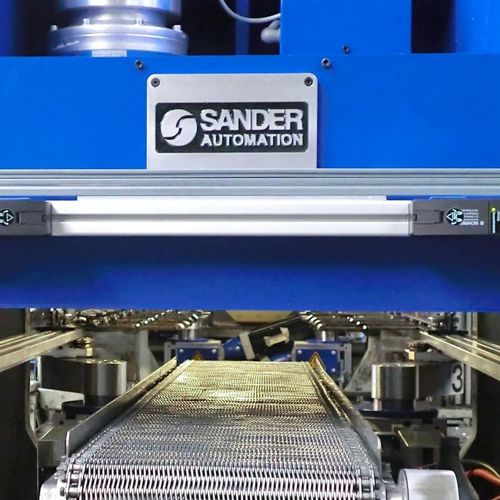

Press transfer system ZHGV series

transportautomatedprogrammable

ZHGV - TRANSFER SYSTEM FOR WARM FORMING AND FORGING The patented swing arm NC transfer unit ZHGV or ZGV is one of the established systems and enables correspondingly higher stroke rates due to its low-backlash axes. Due to the fully enclosed drive units, this series is predestined for semi-hot and hot forming and forging processes. The different sizes allow mounting on various forming presses with a maximum bolster length of 4500 mm. The gripper rail profiles can be designed as fixed or changeable rails. Depending on the products to be transported and the installation situation, a variety of profiles up to 200 x 200 mm can be chosen. With its high flexibility and endless integration possibilities, the ZGV transfer unit can be used with virtually any transfer press. The ZHGV/ZGV series is the transfer system of choice regardless whether you have a new press in mind or want to use it as retrofit system to boost the performance of your existing system. The fully programmable transfer system is designed as ZHGV for 3D use and as ZGV for 2D use without lifting stroke.
