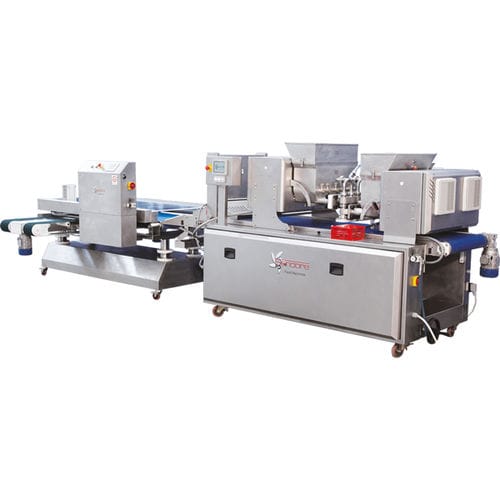

Extruded biscuit production line with extruder MULTILINE 600

with tunnel ovenmulti-head

AVAILABLE SETTINGS • amount of dough; • amount of filling; • cutting length; • speed of the unloading belt; • setting recipe; • save of 20 product recipes with 4 function parameters; • direct feeding to the tunnel oven; • automatic unloading of the product on plate suitable with automatic deposit unit. TECHNICAL DATA Extrusion dough unit: at 6 acetylic resin screws Extrusion filling unit: at 6 acetylic resin screws Filling injector: by three lobe pumps Molding head: at 6 rows Mechanical cutting unit at diaphragm Outfeed conveyor produ: of 600 mm. adjustable Max size of output product: 32 mm. Max production: 32.400 pieces/hour (Kg/h 500/600) Electric-pneumatic working: 220/400V.50/60HZ. 6 bar Electric absorption: KW. 8.5 Max capacity tanks dough/filling: Kg. 30 DEVICES ACCESSORIES (optional) • Guillotine cutting device for cutting product with open or close ends • Decorating device on top of product by smooth roller, striped right, inclined or rhomboidal • Hot stamping device top of product • Automatic deposit unit on plate – dimension plate mm. 600 • Cutting and molding unit 3 rows (Ø max.outlet mm. 50) • Injector unit third filling for filled bicolor product • Rotative extrusion head model TSR6 for product type “roller and twist” • Wire cutting unit
